Mill-Max

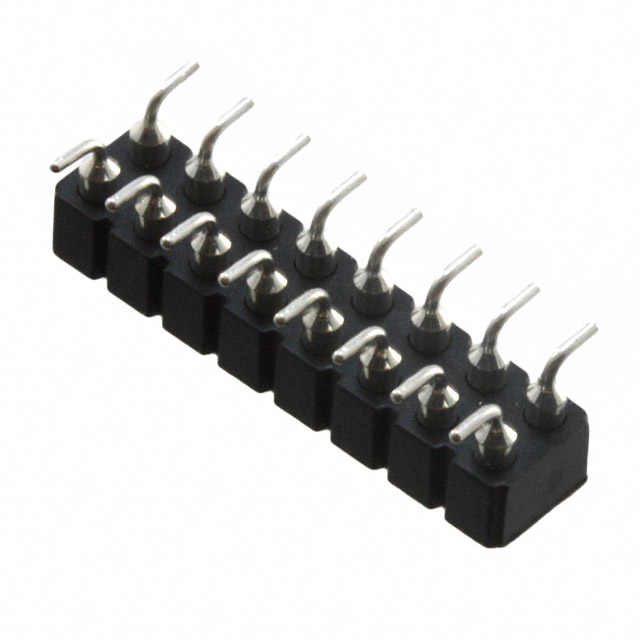

| Part Number | 410-93-216-41-105000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET 16POS .100 DBL SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3831 pcs | Data sheet | 1.410-93-216-41-105000.pdf2.410-93-216-41-105000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 410 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 4.10932E+15 4109321641105000 ED90572 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 16 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
