Mill-Max
| Part Number | 410-13-210-41-001000 | Manufacturer | Mill-Max |
|---|---|---|---|

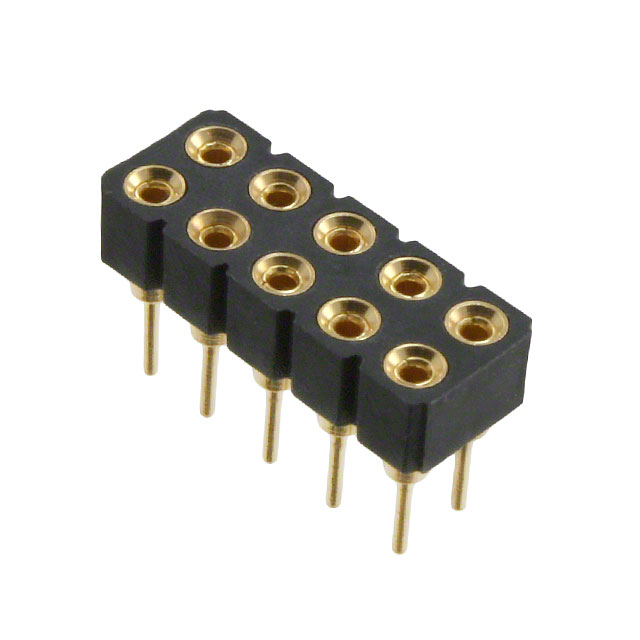

| Description | CONN SOCKET 10POS .100 STR T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6454 pcs | Data sheet | 1.410-13-210-41-001000.pdf2.410-13-210-41-001000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 410 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 4.10132E+15 4101321041001000 ED90569 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
