3808-0-15-15-02-27-10-0

Mill-Max

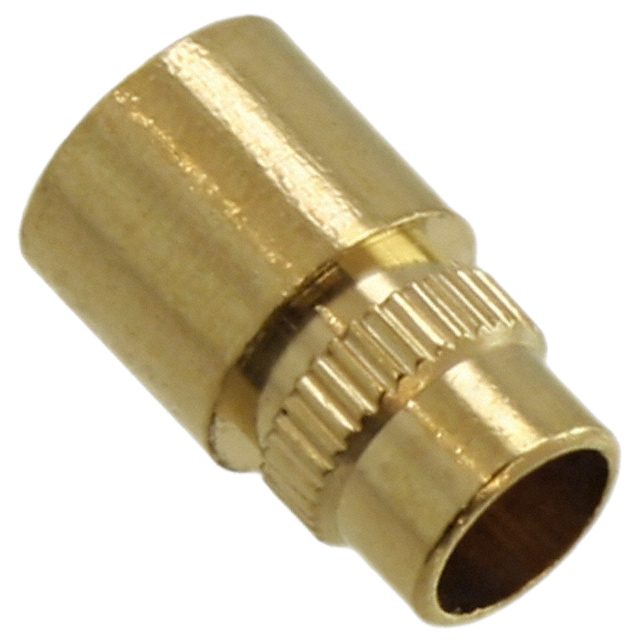

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3808-0-15-15-02-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .040-.050 KNURL
Datasheets:	1.3808-0-15-15-02-27-10-0.pdf 2.3808-0-15-15-02-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	131974 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 131974 pcs

Reference Price (In US Dollars)

1 pcs: $0.246

10 pcs: $0.232

25 pcs: $0.208

50 pcs: $0.185

100 pcs: $0.177

250 pcs: $0.162

500 pcs: $0.154

1000 pcs: $0.127

2500 pcs: $0.116

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.246

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3808-0-15-15-02-27-10-0

Part Number	3808-0-15-15-02-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .040-.050 KNURL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	131974 pcs	Data sheet	1.3808-0-15-15-02-27-10-0.pdf 2.3808-0-15-15-02-27-10-0.pdf
Termination	Press-Fit, Knurled	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.175" (4.45mm)
Series	3808	Pin Hole Diameter	0.068" (1.73mm)
Packaging	Bulk	Other Names	3808-015150227100 3808-015150227100-ND 3808015150227100 ED1246
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.090" (2.29mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.175" (4.45mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.105" (2.67mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Press-Fit, Knurled
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.040" ~ 0.050" (1.02mm ~ 1.27mm)
