3320-1-00-15-00-00-03-0

Mill-Max

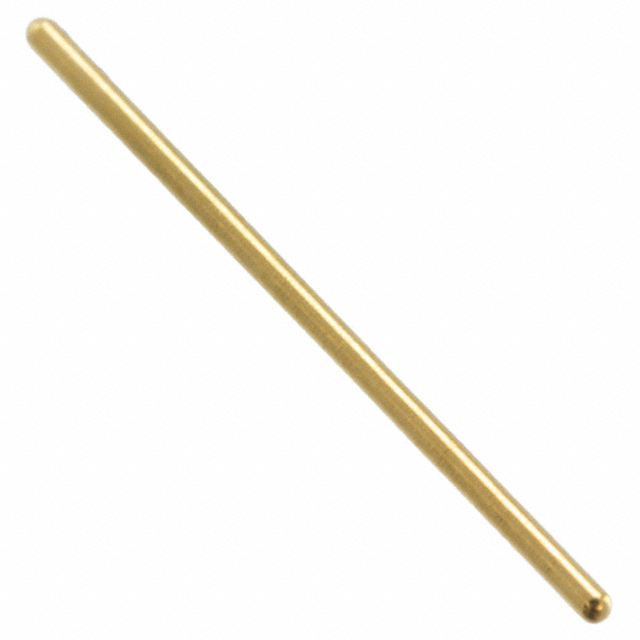

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3320-1-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.020DIA GOLD
Datasheets:	1.3320-1-00-15-00-00-03-0.pdf 2.3320-1-00-15-00-00-03-0.pdf 3.3320-1-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	486647 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 486647 pcs

Reference Price (In US Dollars)

1 pcs: $0.069

10 pcs: $0.064

25 pcs: $0.055

50 pcs: $0.048

100 pcs: $0.044

250 pcs: $0.039

500 pcs: $0.038

1000 pcs: $0.031

2500 pcs: $0.028

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.069

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3320-1-00-15-00-00-03-0

Part Number	3320-1-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.020DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	486647 pcs	Data sheet	1.3320-1-00-15-00-00-03-0.pdf 2.3320-1-00-15-00-00-03-0.pdf 3.3320-1-00-15-00-00-03-0.pdf
Termination	Solder	Terminal Type	Single Post
Terminal Style	Smooth	Series	3320
Pin Size - Below Flange	0.020" (0.51mm) Dia	Pin Size - Above Flange	0.020" (0.51mm) Dia
Packaging	Bulk	Other Names	ED1161
Mounting Type	Through Hole	Mounting Hole Diameter	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.500" (12.70mm)
Length - Below Flange	-	Length - Above Flange	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	-
Detailed Description	Single Post Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
