Mill-Max

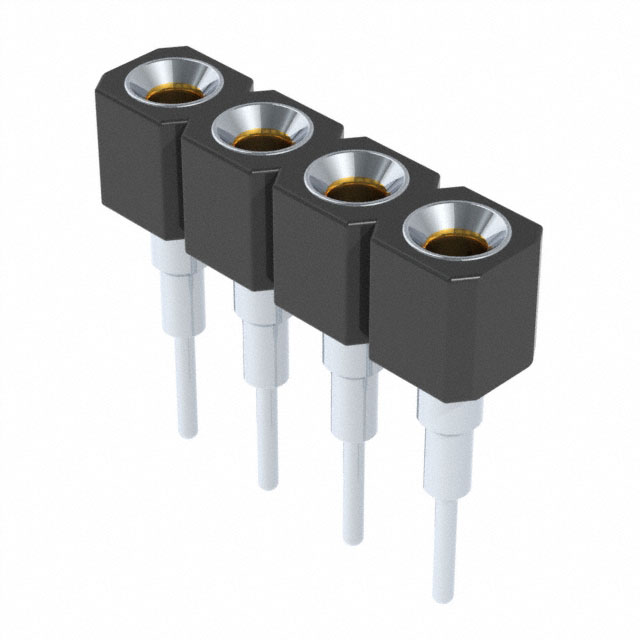

| Part Number | 316-43-104-41-006000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN SOCKET 4POS .100 STR GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72395 pcs | Data sheet | 1.316-43-104-41-006000.pdf2.316-43-104-41-006000.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | 316 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 3.16431E+15 3164310441006000 ED90565 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.236" (6.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Elevated Socket | Applications | - |
