3158-0-00-15-00-00-03-0

Mill-Max

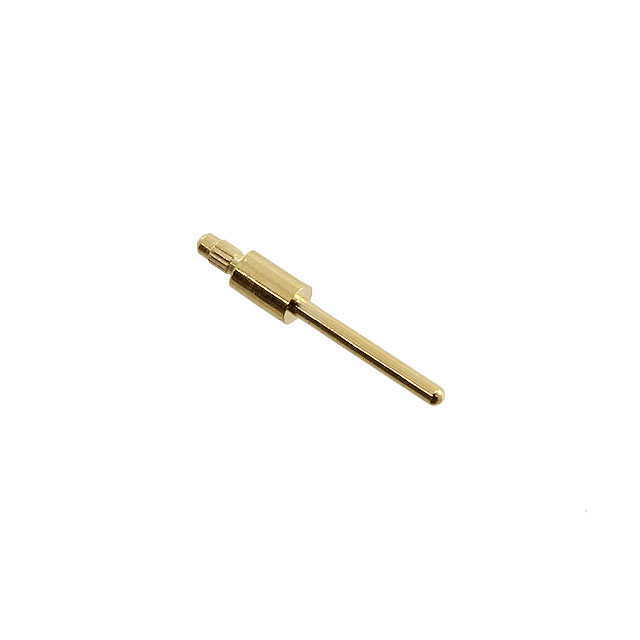

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3158-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN CIRC 0.018DIA GOLD
Datasheets:	1.3158-0-00-15-00-00-03-0.pdf 2.3158-0-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	474990 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 474990 pcs

Reference Price (In US Dollars)

1 pcs: $0.072

10 pcs: $0.068

25 pcs: $0.05

50 pcs: $0.043

100 pcs: $0.042

250 pcs: $0.036

500 pcs: $0.035

1000 pcs: $0.03

2500 pcs: $0.027

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.072

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3158-0-00-15-00-00-03-0

Part Number	3158-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	CONN PC PIN CIRC 0.018DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	474990 pcs	Data sheet	1.3158-0-00-15-00-00-03-0.pdf 2.3158-0-00-15-00-00-03-0.pdf
Termination	Press-Fit, Knurled	Terminal Type	PC Pin
Terminal Style	Single End	Series	3158
Pin Size - Below Flange	0.022" (0.56mm) Dia	Pin Size - Above Flange	0.018" (0.46mm) Dia
Packaging	Bulk	Other Names	3158-000150000030 3158-000150000030-ND 3158000150000030 ED1262
Mounting Type	Through Hole	Mounting Hole Diameter	0.023" (0.58mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.270" (6.86mm)
Length - Below Flange	0.050" (1.27mm)	Length - Above Flange	0.160" (4.06mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.040" (1.02mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
