Mill-Max
| Part Number | 310-43-161-41-001000 | Manufacturer | Mill-Max |
|---|---|---|---|

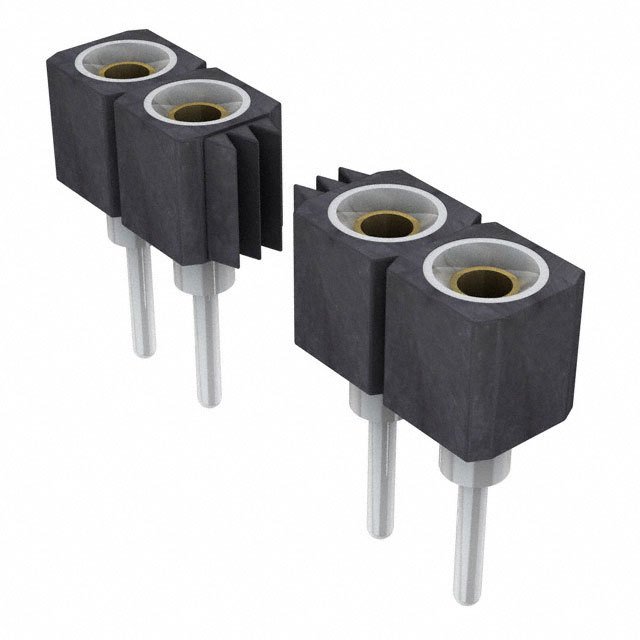

| Description | CONN SOCKET STRIP 61PIN SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13500 pcs | Data sheet | 1.310-43-161-41-001000.pdf2.310-43-161-41-001000.pdf |
| Voltage Rating | 100V, 150VDC | Termination | Solder |
| Style | Board to Board | Series | 310 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 3104316141001000 ED6261 ED6261-ND ED6264-61 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 61 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 61 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
