Mill-Max

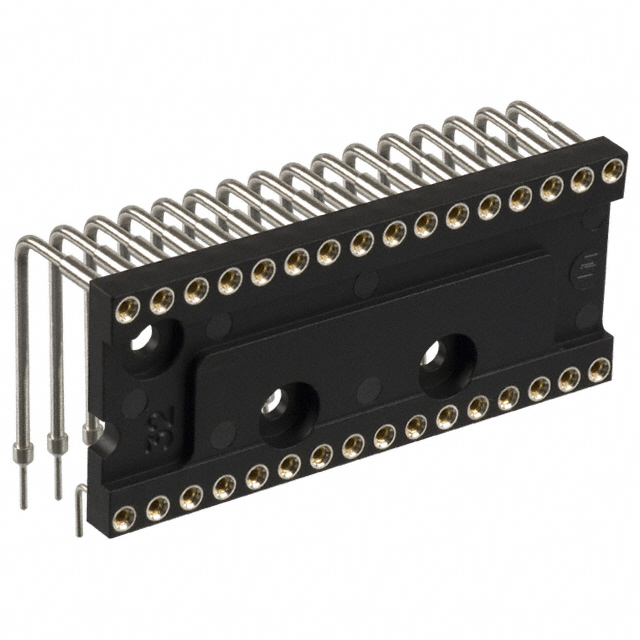

| Part Number | 299-93-632-10-002000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 32POS GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 11072 pcs | Data sheet | 1.299-93-632-10-002000.pdf2.299-93-632-10-002000.pdf |
| Type | DIP, 0.6" (15.24mm) Row Spacing | Termination Post Length | 0.126" (3.20mm) |
| Termination | Solder | Series | 299 |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 299-93-632-10-002 2999363210002000 ED58428 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 32 (2 x 16) |
| Mounting Type | Through Hole, Right Angle, Horizontal | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Features | Closed Frame | Current Rating | 3A |
| Contact Resistance | - | Contact Material - Post | Brass Alloy |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold |
