Mill-Max

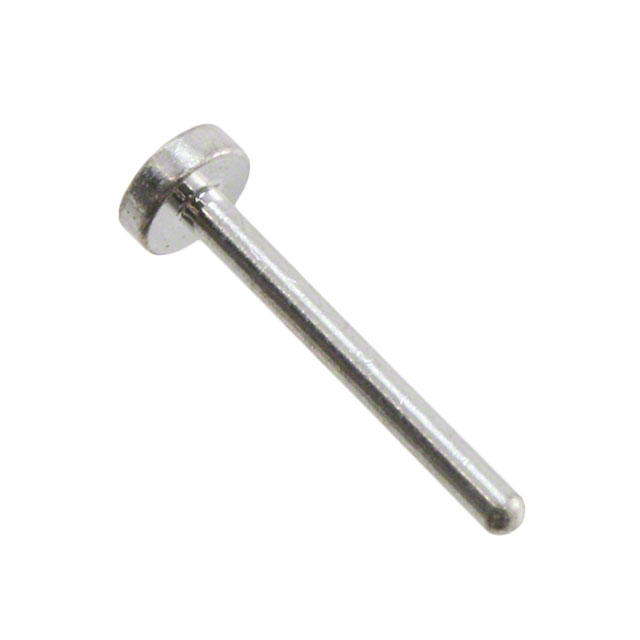

| Part Number | 2650-0-00-01-00-00-33-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC .025DIA TINLEAD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 184150 pcs | Data sheet | 2650-0-00-01-00-00-33-0.pdf |
| Termination | Solder | Terminal Type | PC Pin |
| Terminal Style | Single End, Nail Head | Series | 2650 |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Packaging | Bulk | Other Names | 2.65E+15 2650000010000330 ED90555 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.029" (0.74mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.272" (6.91mm) |
| Length - Below Flange | - | Length - Above Flange | 0.250" (6.35mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.072" (1.83mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Tin-Lead 0.025" (0.64mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin-Lead |
| Board Thickness | - |
