2506-2-00-50-00-00-07-0

Mill-Max

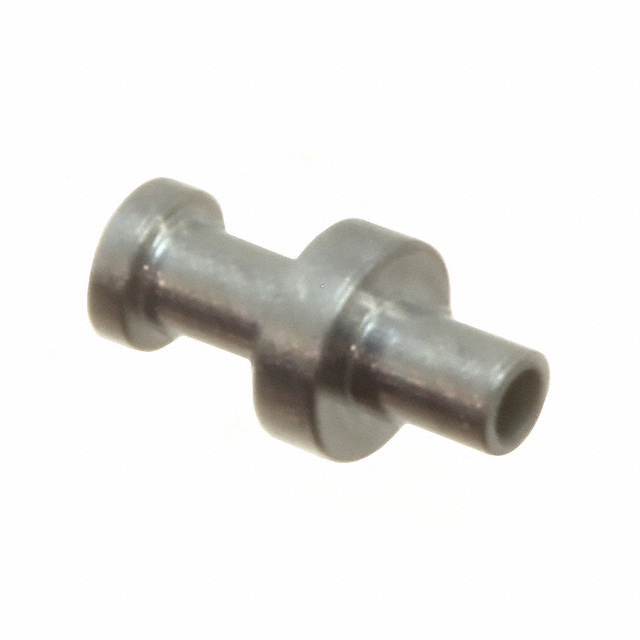

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2506-2-00-50-00-00-07-0
Manufacturer/Brand:	Mill-Max
Product description	TERM TURRET SINGLE L=3.96MM
Datasheets:	1.2506-2-00-50-00-00-07-0.pdf 2.2506-2-00-50-00-00-07-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	113530 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 113530 pcs

Reference Price (In US Dollars)

1 pcs: $0.314

10 pcs: $0.276

25 pcs: $0.26

50 pcs: $0.249

100 pcs: $0.238

250 pcs: $0.217

500 pcs: $0.195

1000 pcs: $0.173

2500 pcs: $0.157

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.314

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2506-2-00-50-00-00-07-0

Part Number	2506-2-00-50-00-00-07-0	Manufacturer	Mill-Max
Description	TERM TURRET SINGLE L=3.96MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	113530 pcs	Data sheet	1.2506-2-00-50-00-00-07-0.pdf 2.2506-2-00-50-00-00-07-0.pdf
Termination	Swage	Terminal Type	Single End
Staking Side OD	0.062" (1.57mm)	Staking Side ID	0.043" (1.09mm)
Series	2506	Other Names	2506-200500000070 2506-200500000070-ND 2506200500000070 ED11397
Number of Turrets	Single	Mounting Type	Through Hole
Mounting Hole Diameter	0.067" (1.70mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.240" (6.10mm)	Length - Below Flange	0.084" (2.13mm)
Length - Above Board	0.156" (3.96mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.125" (3.18mm)	Diameter - Turret Head	0.093" (2.36mm)
Detailed Description	Terminal Turret Connector Single End 0.156" (3.96mm) Tin-Lead	Contact Material	Brass Alloy
Contact Finish Thickness	300.0µin (7.62µm)	Contact Finish	Tin-Lead
Board Thickness	0.062" (1.57mm)
