1946-0-00-15-00-00-03-0

Mill-Max

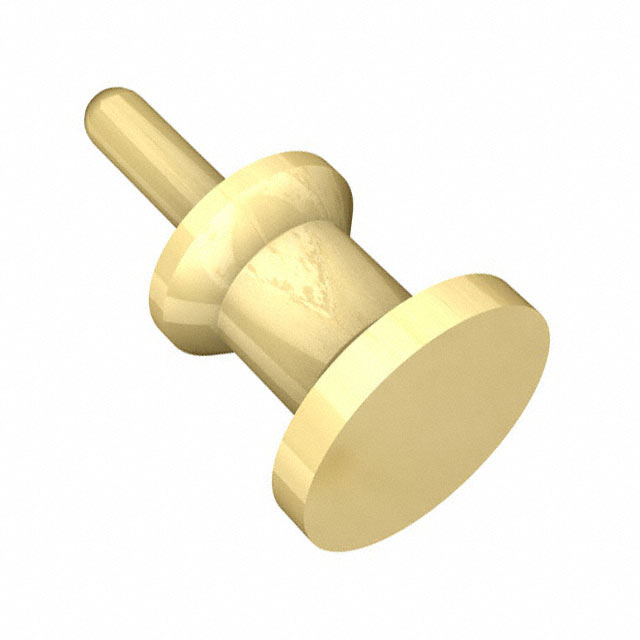

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1946-0-00-15-00-00-03-0
Manufacturer/Brand:	Mill-Max
Product description	TARGET PIN SOLDERTAIL FLAT FACE
Datasheets:	1.1946-0-00-15-00-00-03-0.pdf 2.1946-0-00-15-00-00-03-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	420286 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 420286 pcs

Reference Price (In US Dollars)

1 pcs: $0.079

10 pcs: $0.075

25 pcs: $0.064

50 pcs: $0.056

100 pcs: $0.052

250 pcs: $0.046

500 pcs: $0.044

1000 pcs: $0.036

2500 pcs: $0.033

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.079

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1946-0-00-15-00-00-03-0

Part Number	1946-0-00-15-00-00-03-0	Manufacturer	Mill-Max
Description	TARGET PIN SOLDERTAIL FLAT FACE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	420286 pcs	Data sheet	1.1946-0-00-15-00-00-03-0.pdf 2.1946-0-00-15-00-00-03-0.pdf
Termination	Solder	Terminal Type	PC Pin
Terminal Style	Single End	Series	1946
Pin Size - Below Flange	-	Pin Size - Above Flange	0.030" (0.76mm) Dia
Packaging	Bulk	Other Names	ED1360
Mounting Type	Through Hole	Mounting Hole Diameter	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.230" (5.84mm)
Length - Below Flange	-	Length - Above Flange	0.110" (2.79mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.125" (3.18mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
