1305-0-15-15-47-27-04-0

Mill-Max

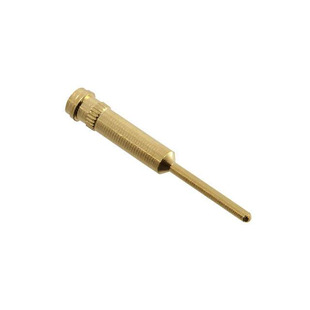

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1305-0-15-15-47-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .025-.037 KNURL
Datasheets:	1.1305-0-15-15-47-27-04-0.pdf 2.1305-0-15-15-47-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	223107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 223107 pcs

Reference Price (In US Dollars)

1 pcs: $0.166

10 pcs: $0.154

25 pcs: $0.139

50 pcs: $0.123

100 pcs: $0.118

250 pcs: $0.108

500 pcs: $0.103

1000 pcs: $0.085

2500 pcs: $0.077

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.166

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1305-0-15-15-47-27-04-0

Part Number	1305-0-15-15-47-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .025-.037 KNURL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	223107 pcs	Data sheet	1.1305-0-15-15-47-27-04-0.pdf 2.1305-0-15-15-47-27-04-0.pdf
Termination	Press-Fit, Knurled	Tail Type	Standard Tail
Tail Diameter	0.024" (0.61mm)	Socket Depth	0.228" (5.79mm)
Series	1305	Pin Hole Diameter	0.051" (1.30mm)
Packaging	Bulk	Other Names	1305-015154727040 1305-015154727040-ND 1305015154727040 ED1235
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.061" (1.55mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.486" (12.34mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.072" (1.83mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit, Knurled
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	0.025" (0.64mm)	Accepts Pin Diameter	0.025" ~ 0.037" (0.64mm ~ 0.94mm)
