1147-0-18-15-21-27-10-0

Mill-Max

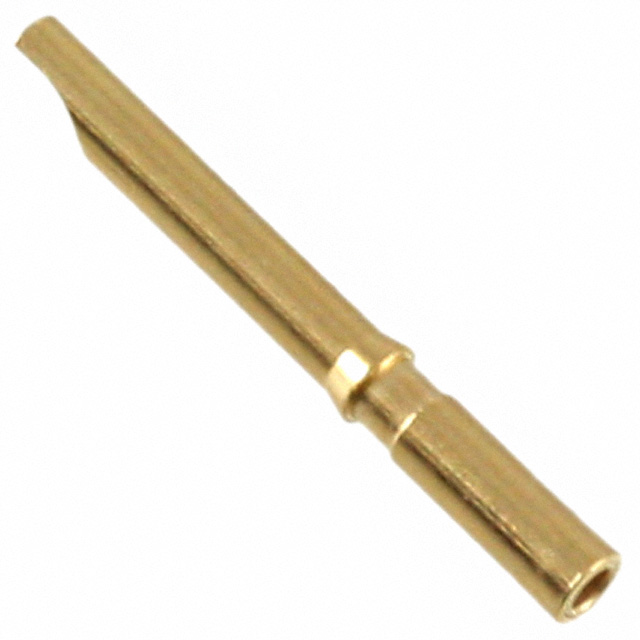

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1147-0-18-15-21-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.022 PRESSFIT
Datasheets:	1.1147-0-18-15-21-27-10-0.pdf 2.1147-0-18-15-21-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	156147 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 156147 pcs

Reference Price (In US Dollars)

1 pcs: $0.213

10 pcs: $0.201

25 pcs: $0.181

50 pcs: $0.161

100 pcs: $0.154

250 pcs: $0.141

500 pcs: $0.134

1000 pcs: $0.111

2500 pcs: $0.101

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1147-0-18-15-21-27-10-0

Part Number	1147-0-18-15-21-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.022 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	156147 pcs	Data sheet	1.1147-0-18-15-21-27-10-0.pdf 2.1147-0-18-15-21-27-10-0.pdf
Termination	Press-Fit	Tail Type	Solder Cup
Tail Diameter	-	Socket Depth	0.225" (5.72mm)
Series	1147	Pin Hole Diameter	0.031" (0.79mm)
Packaging	Bulk	Other Names	1.14702E+15 1147-018152127100 1147-018152127100-ND 1147018152127100 ED1032
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.043" (1.09mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.380" (9.65mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.044" (1.12mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Solder Cup Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.015" ~ 0.022" (0.38mm ~ 0.56mm)
