1094-0-05-15-00-00-01-0

Mill-Max

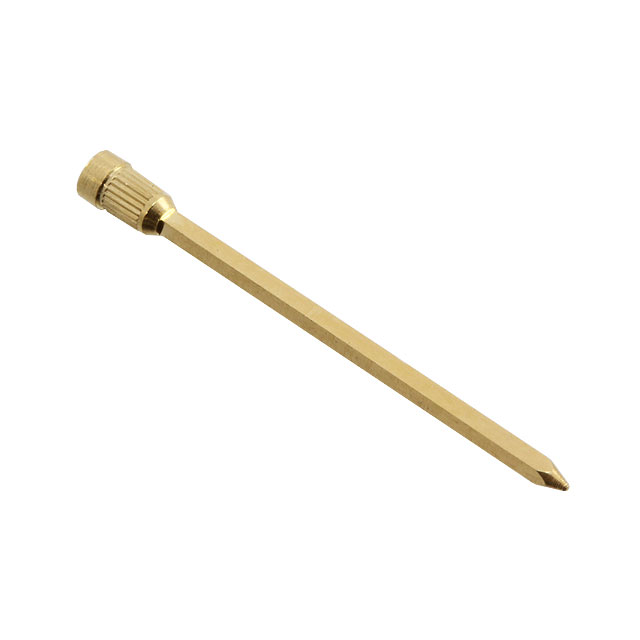

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1094-0-05-15-00-00-01-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PC PIN SQUARE 0.025 GOLD
Datasheets:	1.1094-0-05-15-00-00-01-0.pdf 2.1094-0-05-15-00-00-01-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	248980 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 248980 pcs

Reference Price (In US Dollars)

1 pcs: $0.126

10 pcs: $0.12

25 pcs: $0.103

50 pcs: $0.087

100 pcs: $0.084

250 pcs: $0.075

500 pcs: $0.072

1000 pcs: $0.06

2500 pcs: $0.055

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.126

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1094-0-05-15-00-00-01-0

Part Number	1094-0-05-15-00-00-01-0	Manufacturer	Mill-Max
Description	CONN PC PIN SQUARE 0.025 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	248980 pcs	Data sheet	1.1094-0-05-15-00-00-01-0.pdf 2.1094-0-05-15-00-00-01-0.pdf
Termination	Press-Fit, Knurled, Wire Wrap	Terminal Type	PC Pin
Terminal Style	Single End	Series	1094
Pin Size - Below Flange	-	Pin Size - Above Flange	0.025" (0.64mm) Square
Packaging	Bulk	Other Names	1094-005150000010 1094-005150000010-ND 1094005150000010 ED1179
Mounting Type	Through Hole	Mounting Hole Diameter	0.056" (1.42mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	5 Weeks	Length - Overall	0.710" (18.03mm)
Length - Below Flange	-	Length - Above Flange	0.680" (17.27mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.065" (1.65mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square	Contact Material	Brass Alloy
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-
