Mill-Max

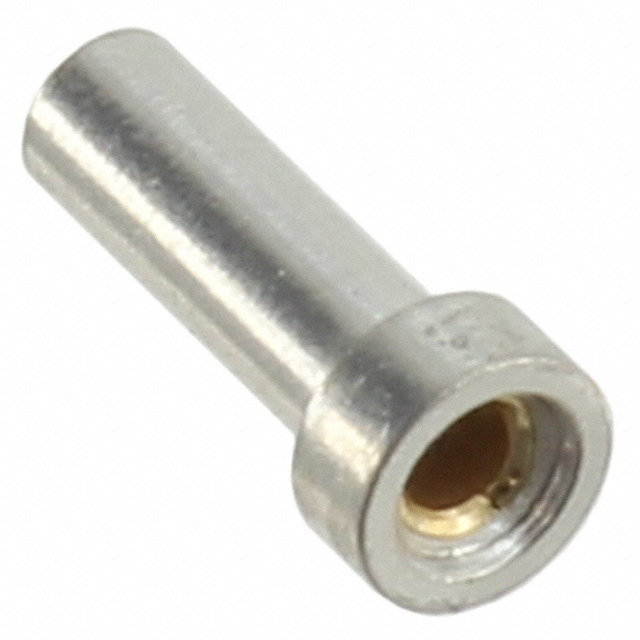

| Part Number | 0566-2-15-01-21-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.022 SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 146670 pcs | Data sheet | 1.0566-2-15-01-21-27-10-0.pdf2.0566-2-15-01-21-27-10-0.pdf |
| Termination | Solder | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.138" (3.51mm) |
| Series | 566 | Pin Hole Diameter | 0.031" (0.79mm) |
| Packaging | Bulk | Other Names | 0566-215012127100 0566215012127100 566215012127100 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.039" (0.99mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.138" (3.51mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Force | - | Flange Diameter | 0.058" (1.47mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.015" ~ 0.022" (0.38mm ~ 0.56mm) |
