0553-1-15-15-11-27-10-0

Mill-Max

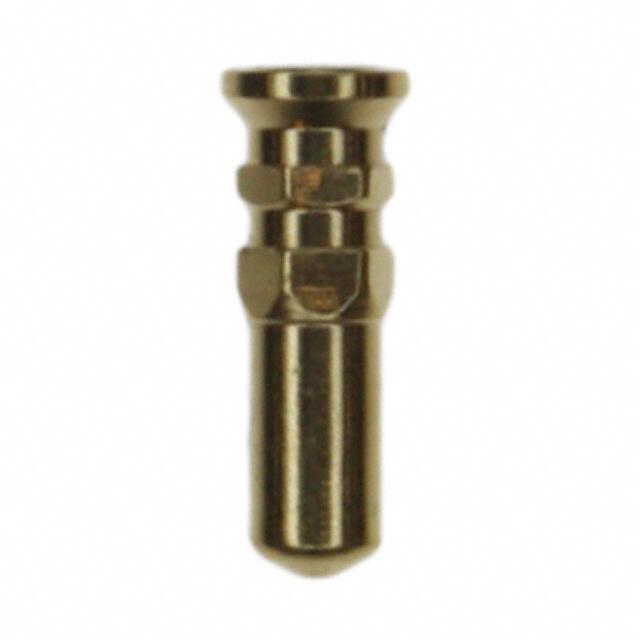

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0553-1-15-15-11-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.020 HEX
Datasheets:	1.0553-1-15-15-11-27-10-0.pdf 2.0553-1-15-15-11-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	263291 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 263291 pcs

Reference Price (In US Dollars)

1 pcs: $0.116

10 pcs: $0.108

25 pcs: $0.093

50 pcs: $0.079

100 pcs: $0.076

250 pcs: $0.068

500 pcs: $0.065

1000 pcs: $0.054

2500 pcs: $0.05

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.116

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0553-1-15-15-11-27-10-0

Part Number	0553-1-15-15-11-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.020 HEX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	263291 pcs	Data sheet	1.0553-1-15-15-11-27-10-0.pdf 2.0553-1-15-15-11-27-10-0.pdf
Termination	Press-Fit, Hex	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.124" (3.15mm)
Series	553	Pin Hole Diameter	0.031" (0.79mm)
Packaging	Bulk	Other Names	00553115151127100 0553-115151127100 0553-115151127100-ND 0553115151127100 553115151127100 ED90097
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.041" (1.04mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.140" (3.56mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.055" (1.40mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.015" ~ 0.020" (0.38mm ~ 0.51mm)
