0436-0-15-15-03-27-10-0

Mill-Max

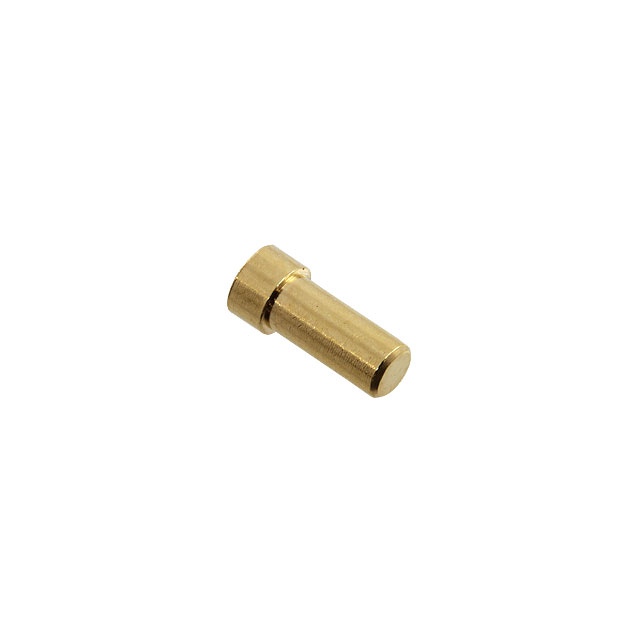

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0436-0-15-15-03-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .040-.060 SOLDER
Datasheets:	1.0436-0-15-15-03-27-10-0.pdf 2.0436-0-15-15-03-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	108025 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 108025 pcs

Reference Price (In US Dollars)

1 pcs: $0.278

10 pcs: $0.26

25 pcs: $0.234

50 pcs: $0.208

100 pcs: $0.20

250 pcs: $0.182

500 pcs: $0.174

1000 pcs: $0.143

2500 pcs: $0.13

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.278

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0436-0-15-15-03-27-10-0

Part Number	0436-0-15-15-03-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .040-.060 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	108025 pcs	Data sheet	1.0436-0-15-15-03-27-10-0.pdf 2.0436-0-15-15-03-27-10-0.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.255" (6.48mm)
Series	436	Pin Hole Diameter	0.078" (1.98mm)
Packaging	Bulk	Other Names	0436-015150327100 0436-015150327100-ND 0436015150327100 436015150327100 ED1255
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.102" (2.59mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.290" (7.37mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.118" (3.00mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.040" ~ 0.060" (1.02mm ~ 1.52mm) No Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.040" ~ 0.060" (1.02mm ~ 1.52mm)
