0336-0-15-15-34-27-04-0

Mill-Max

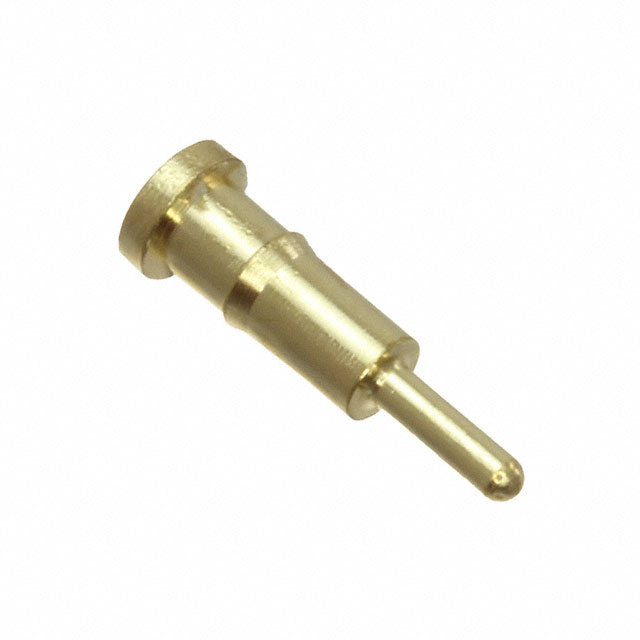

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0336-0-15-15-34-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .032-.046 PRESSFIT
Datasheets:	1.0336-0-15-15-34-27-04-0.pdf 2.0336-0-15-15-34-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66167 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 66167 pcs

Reference Price (In US Dollars)

1 pcs: $0.466

10 pcs: $0.409

25 pcs: $0.385

50 pcs: $0.369

100 pcs: $0.353

250 pcs: $0.321

500 pcs: $0.289

1000 pcs: $0.257

2500 pcs: $0.233

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.466

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0336-0-15-15-34-27-04-0

Part Number	0336-0-15-15-34-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .032-.046 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66167 pcs	Data sheet	1.0336-0-15-15-34-27-04-0.pdf 2.0336-0-15-15-34-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.040" (1.02mm)	Socket Depth	0.205" (5.21mm)
Series	336	Pin Hole Diameter	0.064" (1.63mm)
Packaging	Bulk	Other Names	0336-015153427040 0336-015153427040-ND 0336015153427040 336015153427040 ED11319
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.089" (2.26mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.385" (9.78mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.119" (3.02mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
