0316-0-15-15-34-27-10-0

Mill-Max

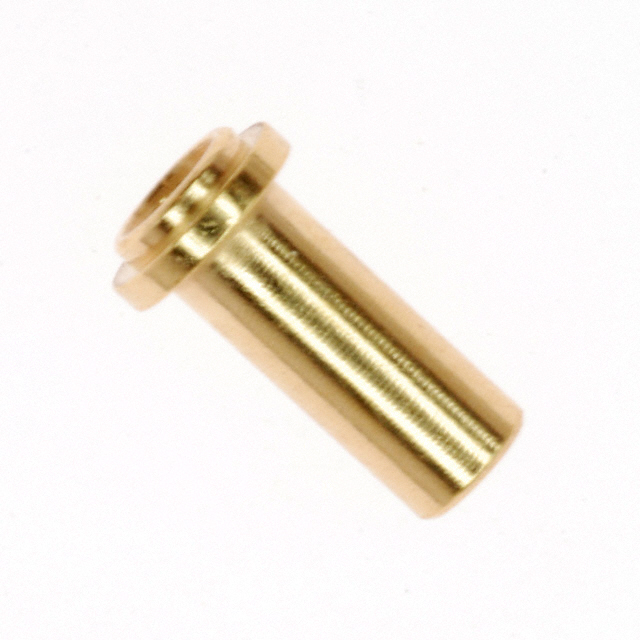

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0316-0-15-15-34-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .032-.046 SOLDER
Datasheets:	1.0316-0-15-15-34-27-10-0.pdf 2.0316-0-15-15-34-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	157336 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 157336 pcs

Reference Price (In US Dollars)

1 pcs: $0.191

10 pcs: $0.181

25 pcs: $0.163

50 pcs: $0.145

100 pcs: $0.139

250 pcs: $0.127

500 pcs: $0.121

1000 pcs: $0.099

2500 pcs: $0.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.191

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0316-0-15-15-34-27-10-0

Part Number	0316-0-15-15-34-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .032-.046 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	157336 pcs	Data sheet	1.0316-0-15-15-34-27-10-0.pdf 2.0316-0-15-15-34-27-10-0.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.195" (4.95mm)
Series	316	Pin Hole Diameter	0.064" (1.63mm)
Packaging	Bulk	Other Names	00316015153427100 0316-015153427100 0316-015153427100-ND 0316015153427100 316015153427100 ED90077
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.087" (2.21mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.236" (6.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.126" (3.20mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
