0301-1-15-15-47-27-10-0

Mill-Max

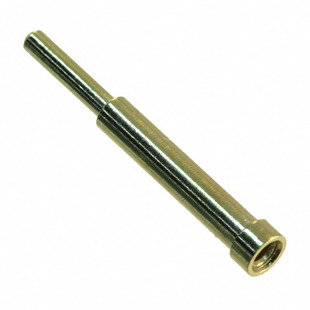

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0301-1-15-15-47-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .025-.037 SOLDER
Datasheets:	0301-1-15-15-47-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	191114 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 191114 pcs

Reference Price (In US Dollars)

1 pcs: $0.202

10 pcs: $0.188

25 pcs: $0.169

50 pcs: $0.15

100 pcs: $0.144

250 pcs: $0.132

500 pcs: $0.125

1000 pcs: $0.103

2500 pcs: $0.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.202

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0301-1-15-15-47-27-10-0

Part Number	0301-1-15-15-47-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .025-.037 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	191114 pcs	Data sheet	0301-1-15-15-47-27-10-0.pdf
Termination	Solder	Tail Type	Standard Tail
Tail Diameter	0.040" (1.02mm)	Socket Depth	0.250" (6.35mm)
Series	301	Pin Hole Diameter	0.051" (1.30mm)
Packaging	Bulk	Other Names	0301-115154727100 0301-115154727100-ND 0301115154727100 3.01115E+14 301115154727100 ED1009
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.042" (1.07mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.537" (13.64mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.078" (1.98mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	0.025" (0.64mm)	Accepts Pin Diameter	0.025" ~ 0.037" (0.64mm ~ 0.94mm)
