0291-0-15-15-16-27-10-0

Mill-Max

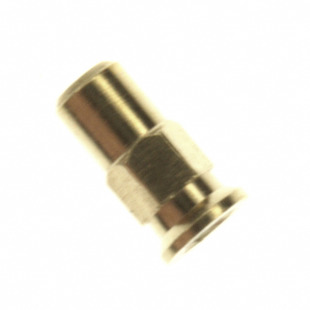

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0291-0-15-15-16-27-10-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .022-.034 HEX
Datasheets:	1.0291-0-15-15-16-27-10-0.pdf 2.0291-0-15-15-16-27-10-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	259890 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 259890 pcs

Reference Price (In US Dollars)

1 pcs: $0.152

10 pcs: $0.144

25 pcs: $0.123

50 pcs: $0.105

100 pcs: $0.101

250 pcs: $0.09

500 pcs: $0.086

1000 pcs: $0.072

2500 pcs: $0.066

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.152

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0291-0-15-15-16-27-10-0

Part Number	0291-0-15-15-16-27-10-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .022-.034 HEX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	259890 pcs	Data sheet	1.0291-0-15-15-16-27-10-0.pdf 2.0291-0-15-15-16-27-10-0.pdf
Termination	Press-Fit, Hex	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.120" (3.05mm)
Series	291	Pin Hole Diameter	0.051" (1.30mm)
Packaging	Bulk	Other Names	0291-015151627100 0291-015151627100-ND 0291015151627100 2.91015E+14 291015151627100 ED90534
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.067" (1.70mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.145" (3.68mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.079" (2.01mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Press-Fit, Hex
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	0.025" (0.64mm)	Accepts Pin Diameter	0.022" ~ 0.034" (0.56mm ~ 0.86mm)
