0135-0-15-15-30-27-04-0

Mill-Max

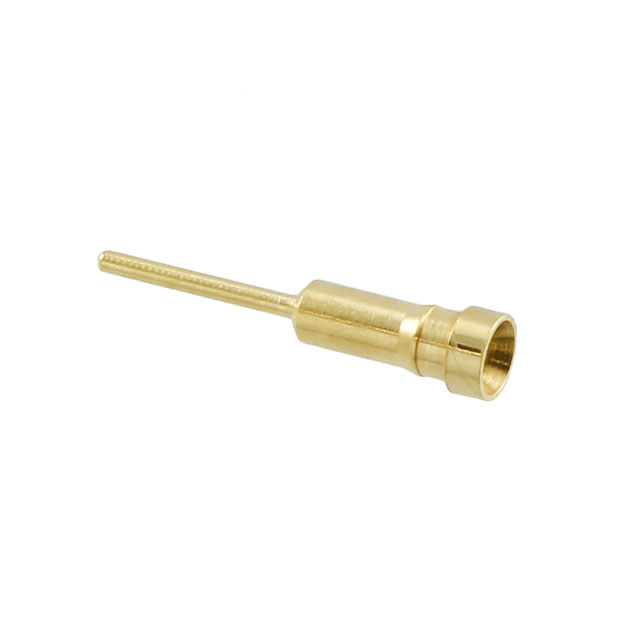

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0135-0-15-15-30-27-04-0
Manufacturer/Brand:	Mill-Max
Product description	CONN PIN RCPT .015-.025 PRESSFIT
Datasheets:	1.0135-0-15-15-30-27-04-0.pdf 2.0135-0-15-15-30-27-04-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	261716 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 261716 pcs

Reference Price (In US Dollars)

1 pcs: $0.134

10 pcs: $0.127

25 pcs: $0.109

50 pcs: $0.092

100 pcs: $0.089

250 pcs: $0.08

500 pcs: $0.076

1000 pcs: $0.063

2500 pcs: $0.058

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.134

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0135-0-15-15-30-27-04-0

Part Number	0135-0-15-15-30-27-04-0	Manufacturer	Mill-Max
Description	CONN PIN RCPT .015-.025 PRESSFIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	261716 pcs	Data sheet	1.0135-0-15-15-30-27-04-0.pdf 2.0135-0-15-15-30-27-04-0.pdf
Termination	Press-Fit	Tail Type	Standard Tail
Tail Diameter	0.020" (0.51mm)	Socket Depth	0.150" (3.81mm)
Series	135	Pin Hole Diameter	0.043" (1.09mm)
Packaging	Bulk	Other Names	0135-015153027040 0135-015153027040-ND 0135015153027040 135015153027040 ED1190
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.057" (1.45mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.356" (9.04mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	-	Flange Diameter	0.072" (1.83mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
Contact Material	Beryllium Copper	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
