750342104

Midcom / Wurth Electronics

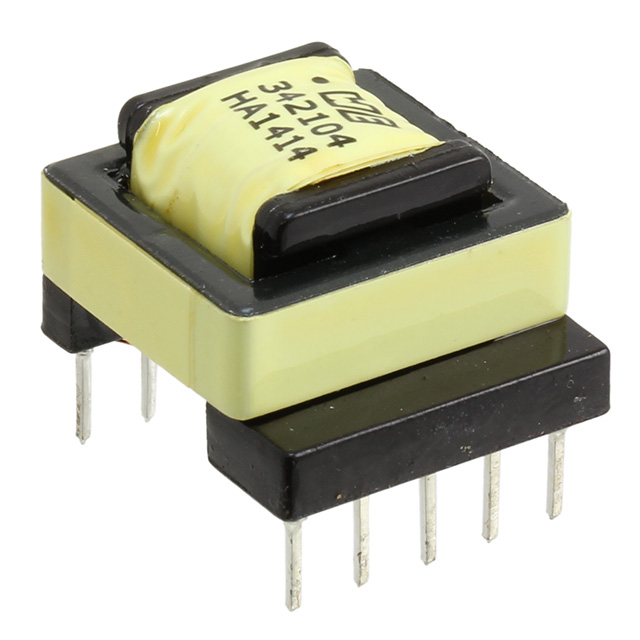

Image may be representation. See specifications for product details.

Product Overview

Part Number:	750342104
Manufacturer/Brand:	Midcom / Wurth Electronics
Product description	WE-FB FLYBACK TRANSFORMER
Datasheets:	750342104.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17989 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17989 pcs

Reference Price (In US Dollars)

1 pcs: $1.897

10 pcs: $1.806

50 pcs: $1.662

100 pcs: $1.561

250 pcs: $1.463

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.897

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 750342104

Part Number	750342104	Manufacturer	Midcom / Wurth Electronics
Description	WE-FB FLYBACK TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17989 pcs	Data sheet	750342104.pdf
Voltage - Primary	85 ~ 264V	Voltage - Isolation	3750Vrms
Voltage - Auxiliary	12V @ 60mA	Type	For AC/DC Converters
Size / Dimension	0.665" L x 0.740" W (16.90mm x 18.80mm)	Series	WE-FB, MID-OLTI
Packaging	Tray	Other Names	1297-1121
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	UCC287xx, UCC289xx
Inductance @ Frequency	1.3mH @ 50kHz	Height - Seated (Max)	0.529" (13.44mm)
Frequency	80kHz	Footprint	0.665" L x 0.740" W (16.90mm x 18.80mm)
Chipset Manufacturer	Texas Instruments	Applications	Flyback Converters
