SG7805AK

Microsemi

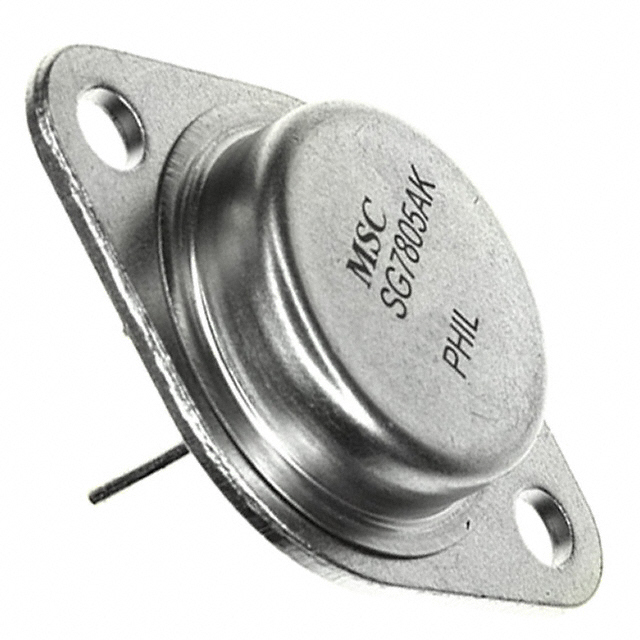

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG7805AK
Manufacturer/Brand:	Microsemi
Product description	IC REG LINEAR 1.5A TO3
Datasheets:	SG7805AK.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5328 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5328 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG7805AK

Part Number	SG7805AK	Manufacturer	Microsemi
Description	IC REG LINEAR 1.5A TO3	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5328 pcs	Data sheet	SG7805AK.pdf
Voltage Dropout (Max)	2.5V @ 500mA	Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-	Voltage - Input (Max)	50V
Supplier Device Package	TO-204AD (TO-3)	Series	Military, MIL-STD-883
Protection Features	Over Current, Over Temperature	Packaging	Bulk
Package / Case	TO-204AA, TO-3	PSRR	68dB (120Hz)
Output Type	Fixed	Output Configuration	Positive
Operating Temperature	-55°C ~ 125°C (TA)	Number of Regulators	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1.5A TO-204AD (TO-3)
Current - Supply (Max)	7mA	Current - Output	1.5A
Control Features	Current Limit, Enable	Base Part Number	SG7805
