Microsemi

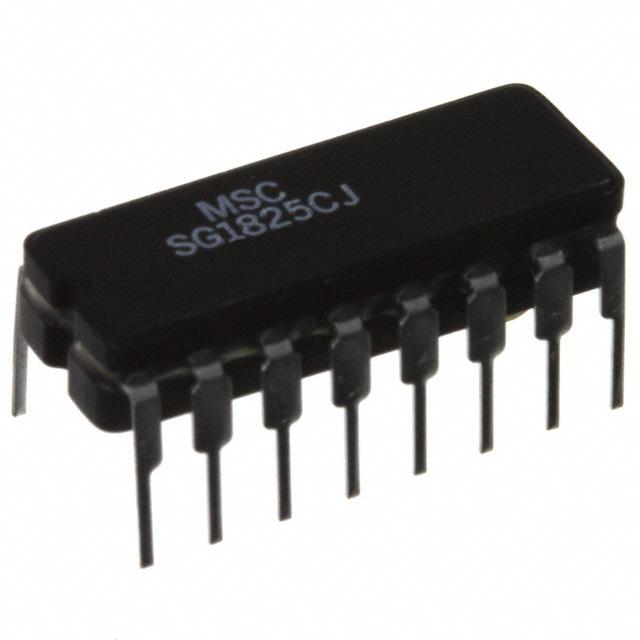

| Part Number | SG1825CJ | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IC REG CTRLR BUCK/FLYBACK 16DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6087 pcs | Data sheet | SG1825CJ.pdf |
| Voltage - Supply (Vcc/Vdd) | 10 V ~ 30 V | Topology | Buck, Flyback |
| Synchronous Rectifier | Yes | Supplier Device Package | 16-CDIP |
| Series | Military, MIL-STD-883B | Serial Interfaces | - |
| Packaging | - | Package / Case | - |
| Output Type | Transistor Driver | Output Phases | 1 |
| Output Configuration | Positive | Other Names | 1259-1166 1259-1166-MIL Q11089122 SG1825CJ-ND |
| Operating Temperature | -55°C ~ 125°C (TA) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Function | Step-Down, Step-Up/Step-Down | Frequency - Switching | 4kHz ~ 1.5MHz |
| Duty Cycle (Max) | 85% | Detailed Description | Buck, Flyback Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-CDIP |
| Control Features | Current Limit, Ramp, Soft Start | Clock Sync | No |
| Base Part Number | SG*825 |
