JANTX2N6051

Microsemi

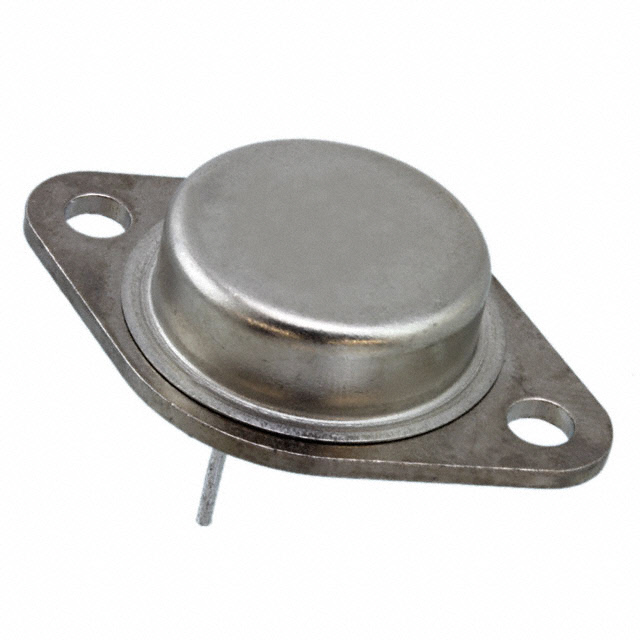

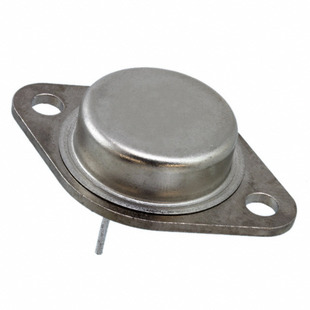

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANTX2N6051
Manufacturer/Brand:	Microsemi
Product description	TRANS PNP DARL 80V 12A TO-3
Datasheets:	JANTX2N6051.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	1113 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1113 pcs

Reference Price (In US Dollars)

100 pcs: $28.969

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$28.969

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANTX2N6051

Part Number	JANTX2N6051	Manufacturer	Microsemi
Description	TRANS PNP DARL 80V 12A TO-3	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1113 pcs	Data sheet	JANTX2N6051.pdf
Voltage - Collector Emitter Breakdown (Max)	80V	Vce Saturation (Max) @ Ib, Ic	3V @ 120mA, 12A
Transistor Type	PNP - Darlington	Supplier Device Package	TO-204AA (TO-3)
Series	Military, MIL-PRF-19500/501	Power - Max	150W
Packaging	Bulk	Package / Case	TO-204AA, TO-3
Other Names	1086-15533 1086-15533-MIL	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Frequency - Transition	-	Detailed Description	Bipolar (BJT) Transistor PNP - Darlington 80V 12A 150W Through Hole TO-204AA (TO-3)
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 6A, 3V	Current - Collector Cutoff (Max)	1mA
Current - Collector (Ic) (Max)	12A
