JANTX1N5615

Microsemi

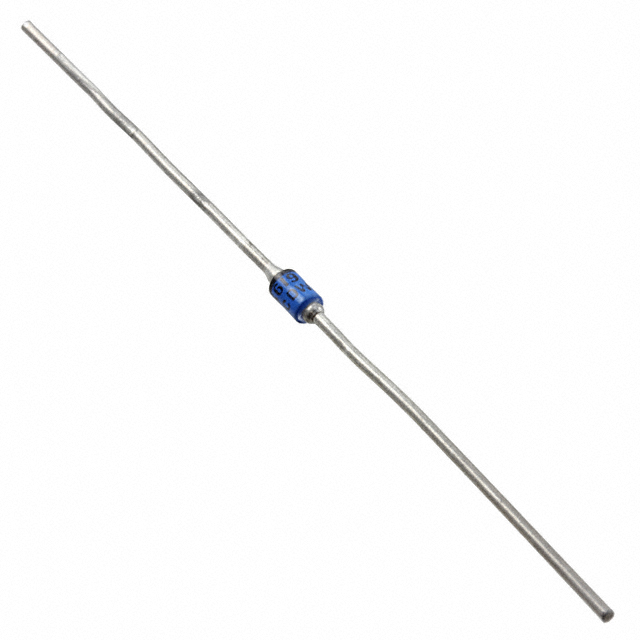

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANTX1N5615
Manufacturer/Brand:	Microsemi
Product description	DIODE GEN PURP 200V 1A AXIAL
Datasheets:	JANTX1N5615.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	11107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11107 pcs

Reference Price (In US Dollars)

1 pcs: $3.139

10 pcs: $2.825

100 pcs: $2.323

500 pcs: $1.946

1000 pcs: $1.695

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.139

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANTX1N5615

Part Number	JANTX1N5615	Manufacturer	Microsemi
Description	DIODE GEN PURP 200V 1A AXIAL	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	11107 pcs	Data sheet	JANTX1N5615.pdf
Voltage - Forward (Vf) (Max) @ If	1.6V @ 3A	Voltage - DC Reverse (Vr) (Max)	200V
Supplier Device Package	A-PAK	Speed	Fast Recovery = 200mA (Io)
Series	Military, MIL-PRF-19500/429	Reverse Recovery Time (trr)	150ns
Packaging	Bulk	Package / Case	A, Axial
Other Names	1086-15178 1086-15178-MIL JANTX1N5615-ND Q3147293	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Diode Type	Standard	Detailed Description	Diode Standard 200V 1A Through Hole A-PAK
Current - Reverse Leakage @ Vr	500nA @ 200V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	45pF @ 12V, 1MHz	Base Part Number	1N5615
