JANTX1N3595US

MicrosemiMicrosemi

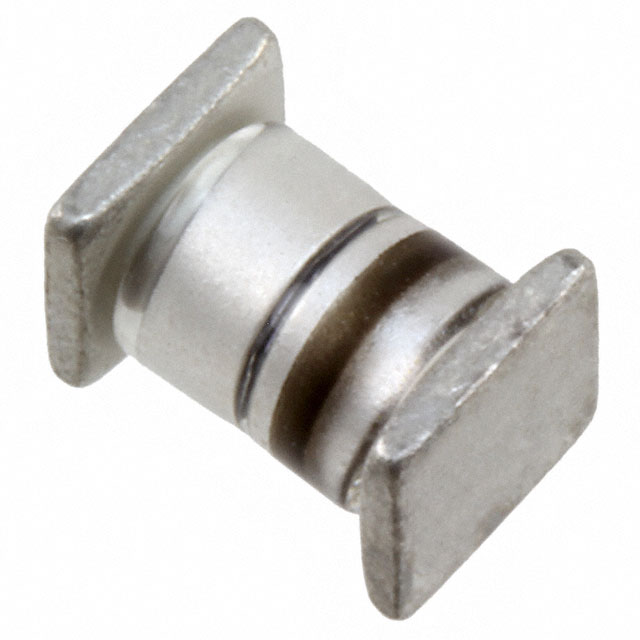

JANTX1N3595US Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JANTX1N3595US
Manufacturer/Brand: Microsemi
Product description DIODE GEN PURP 200MA B-MELF
Datasheets:
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 3875 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3875 pcs
Reference Price (In US Dollars)
1 pcs
$7.788
10 pcs
$7.081
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$7.788

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JANTX1N3595US

Part Number JANTX1N3595US Manufacturer Microsemi
Description DIODE GEN PURP 200MA B-MELF Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 3875 pcs Data sheet
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA Supplier Device Package B, SQ-MELF
Speed Small Signal =< 200mA (Io), Any Speed Series Military, MIL-S-19500-241
Reverse Recovery Time (trr) 3µs Packaging Bulk
Package / Case SQ-MELF, B Other Names 1086-15299
1086-15299-MIL
Operating Temperature - Junction -65°C ~ 150°C Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 8 Weeks
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Diode Type Standard
Detailed Description Diode Standard 200mA (DC) Surface Mount B, SQ-MELF Current - Reverse Leakage @ Vr 1nA @ 125V
Current - Average Rectified (Io) 200mA (DC) Capacitance @ Vr, F -
