JANS2N5339U3

Microsemi

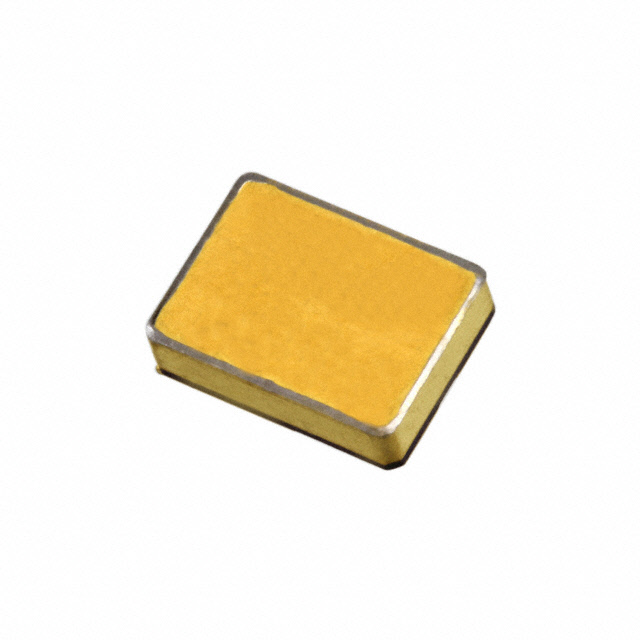

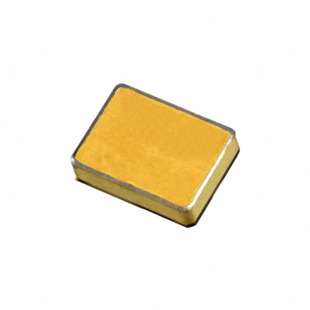

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANS2N5339U3
Manufacturer/Brand:	Microsemi
Product description	TRANS NPN 100V 5A SMD5
Datasheets:	JANS2N5339U3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	55 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55 pcs

Reference Price (In US Dollars)

1 pcs: $531.745

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$531.745

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANS2N5339U3

Part Number	JANS2N5339U3	Manufacturer	Microsemi
Description	TRANS NPN 100V 5A SMD5	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	55 pcs	Data sheet	JANS2N5339U3.pdf
Voltage - Collector Emitter Breakdown (Max)	100V	Vce Saturation (Max) @ Ib, Ic	1.2V @ 500mA, 5A
Transistor Type	NPN	Supplier Device Package	SMD5
Series	Military, MIL-PRF-19500/560	Power - Max	1W
Packaging	Bulk	Package / Case	5-SMD
Other Names	1086-15274 1086-15274-MIL	Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Frequency - Transition	-
Detailed Description	Bipolar (BJT) Transistor NPN 100V 5A 1W Surface Mount SMD5	DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 2A, 2V
Current - Collector Cutoff (Max)	100µA	Current - Collector (Ic) (Max)	5A
