APTMC120TAM33CTPAG

MicrosemiMicrosemi

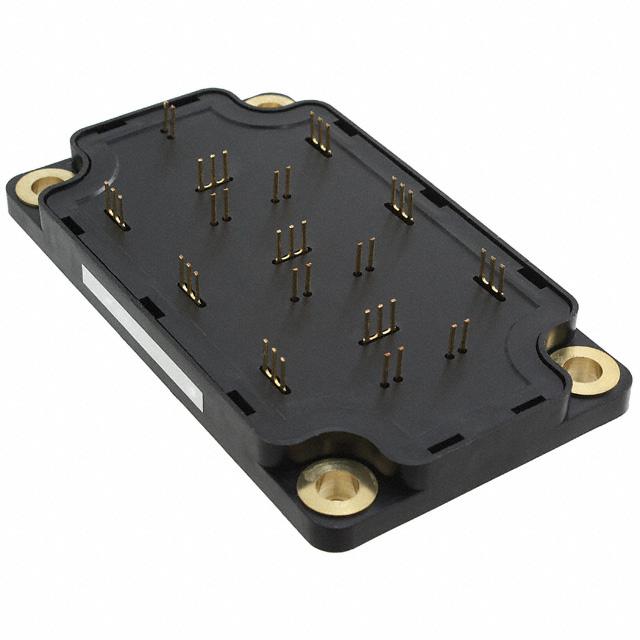

APTMC120TAM33CTPAG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: APTMC120TAM33CTPAG
Manufacturer/Brand: Microsemi
Product description MOSFET 6N-CH 1200V 78A SP6-P
Datasheets: APTMC120TAM33CTPAG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 122 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 122 pcs
Reference Price (In US Dollars)
1 pcs
$310.89
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$310.89

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of APTMC120TAM33CTPAG

Part Number APTMC120TAM33CTPAG Manufacturer Microsemi
Description MOSFET 6N-CH 1200V 78A SP6-P Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 122 pcs Data sheet APTMC120TAM33CTPAG.pdf
Vgs(th) (Max) @ Id 2.2V @ 3mA (Typ) Supplier Device Package SP6-P
Series - Rds On (Max) @ Id, Vgs 33 mOhm @ 60A, 20V
Power - Max 370W Packaging Bulk
Package / Case SP6 Other Names APTMC120TAM33CTPACC6543
Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 32 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Capacitance (Ciss) (Max) @ Vds 2850pF @ 1000V
Gate Charge (Qg) (Max) @ Vgs 148nC @ 20V FET Type 6 N-Channel (3-Phase Bridge)
FET Feature Silicon Carbide (SiC) Drain to Source Voltage (Vdss) 1200V (1.2kV)
Detailed Description Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 78A (Tc) 370W Chassis Mount SP6-P Current - Continuous Drain (Id) @ 25°C 78A (Tc)
