APTM20TAM16FPG

Microsemi

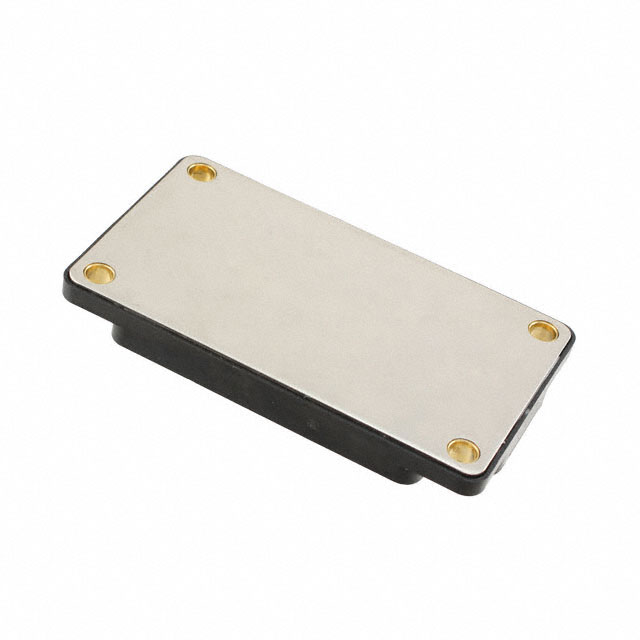

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM20TAM16FPG
Manufacturer/Brand:	Microsemi
Product description	MOSFET 6N-CH 200V 104A SP6-P
Datasheets:	1.APTM20TAM16FPG.pdf 2.APTM20TAM16FPG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	549 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 549 pcs

Reference Price (In US Dollars)

100 pcs: $54.592

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$54.592

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM20TAM16FPG

Part Number	APTM20TAM16FPG	Manufacturer	Microsemi
Description	MOSFET 6N-CH 200V 104A SP6-P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	549 pcs	Data sheet	1.APTM20TAM16FPG.pdf 2.APTM20TAM16FPG.pdf
Vgs(th) (Max) @ Id	5V @ 2.5mA	Supplier Device Package	SP6-P
Series	-	Rds On (Max) @ Id, Vgs	19 mOhm @ 52A, 10V
Power - Max	390W	Packaging	Bulk
Package / Case	SP6	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	7220pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	140nC @ 10V
FET Type	6 N-Channel (3-Phase Bridge)	FET Feature	Standard
Drain to Source Voltage (Vdss)	200V	Detailed Description	Mosfet Array 6 N-Channel (3-Phase Bridge) 200V 104A 390W Chassis Mount SP6-P
Current - Continuous Drain (Id) @ 25°C	104A
