APTM100UM65SAG

Microsemi

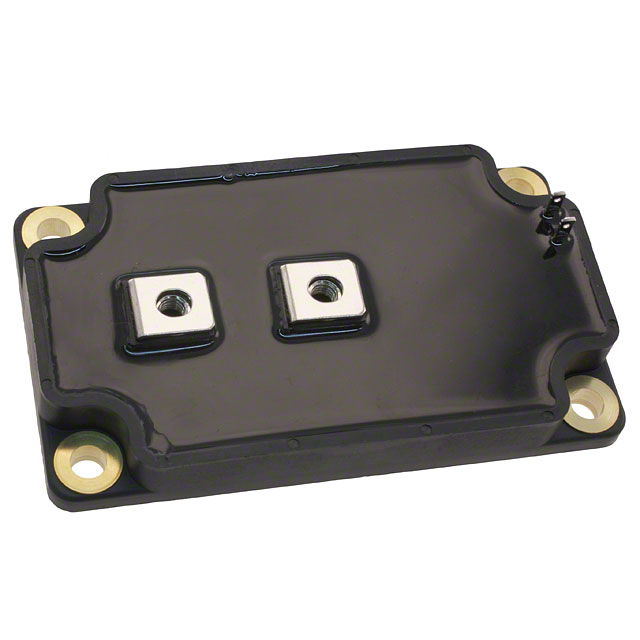

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM100UM65SAG
Manufacturer/Brand:	Microsemi
Product description	MOSFET N-CH 1000V 145A SP6
Datasheets:	1.APTM100UM65SAG.pdf 2.APTM100UM65SAG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	419 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 419 pcs

Reference Price (In US Dollars)

1 pcs: $75.546

10 pcs: $71.899

25 pcs: $69.294

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$75.546

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM100UM65SAG

Part Number	APTM100UM65SAG	Manufacturer	Microsemi
Description	MOSFET N-CH 1000V 145A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	419 pcs	Data sheet	1.APTM100UM65SAG.pdf 2.APTM100UM65SAG.pdf
Vgs(th) (Max) @ Id	5V @ 20mA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	SP6
Series	-	Rds On (Max) @ Id, Vgs	78 mOhm @ 72.5A, 10V
Power Dissipation (Max)	3250W (Tc)	Packaging	Bulk
Package / Case	SP6	Other Names	APTM100UM65SAGMI APTM100UM65SAGMI-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	28500pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	1068nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	1000V	Detailed Description	N-Channel 1000V 145A (Tc) 3250W (Tc) Chassis Mount SP6
Current - Continuous Drain (Id) @ 25°C	145A (Tc)
