APTGF30TL601G

Microsemi

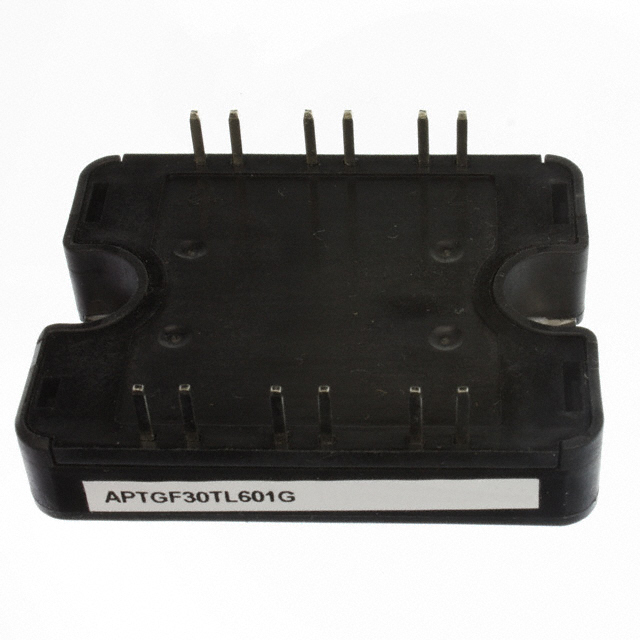

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGF30TL601G
Manufacturer/Brand:	Microsemi
Product description	POWER MODULE IGBT 600V 30A SP1
Datasheets:	1.APTGF30TL601G.pdf 2.APTGF30TL601G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4658 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4658 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGF30TL601G

Part Number	APTGF30TL601G	Manufacturer	Microsemi
Description	POWER MODULE IGBT 600V 30A SP1	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4658 pcs	Data sheet	1.APTGF30TL601G.pdf 2.APTGF30TL601G.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 30A
Supplier Device Package	SP1	Series	-
Power - Max	140W	Package / Case	SP1
Other Names	APTGF30TL601GMI APTGF30TL601GMI-ND	Operating Temperature	-
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	1.35nF @ 25V	Input	Standard
IGBT Type	NPT	Detailed Description	IGBT Module NPT Three Level Inverter 600V 42A 140W Chassis Mount SP1
Current - Collector Cutoff (Max)	250µA	Current - Collector (Ic) (Max)	42A
Configuration	Three Level Inverter
