APTGF100A120TG

MicrosemiMicrosemi

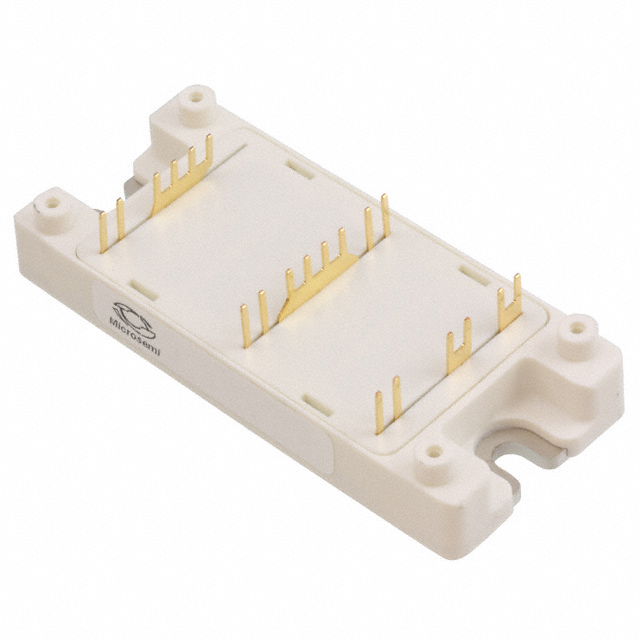

APTGF100A120TG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: APTGF100A120TG
Manufacturer/Brand: Microsemi
Product description POWER MOD IGBT NPT PHASE LEG SP4
Datasheets: 1.APTGF100A120TG.pdf2.APTGF100A120TG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6392 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6392 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of APTGF100A120TG

Part Number APTGF100A120TG Manufacturer Microsemi
Description POWER MOD IGBT NPT PHASE LEG SP4 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6392 pcs Data sheet 1.APTGF100A120TG.pdf2.APTGF100A120TG.pdf
Voltage - Collector Emitter Breakdown (Max) 1200V Vce(on) (Max) @ Vge, Ic 3.7V @ 15V, 100A
Supplier Device Package SP4 Series -
Power - Max 568W Package / Case SP4
Operating Temperature - NTC Thermistor Yes
Mounting Type Chassis Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Capacitance (Cies) @ Vce 6.9nF @ 25V
Input Standard IGBT Type NPT
Detailed Description IGBT Module NPT Half Bridge 1200V 135A 568W Chassis Mount SP4 Current - Collector Cutoff (Max) 350µA
Current - Collector (Ic) (Max) 135A Configuration Half Bridge
