689-3P

Microsemi

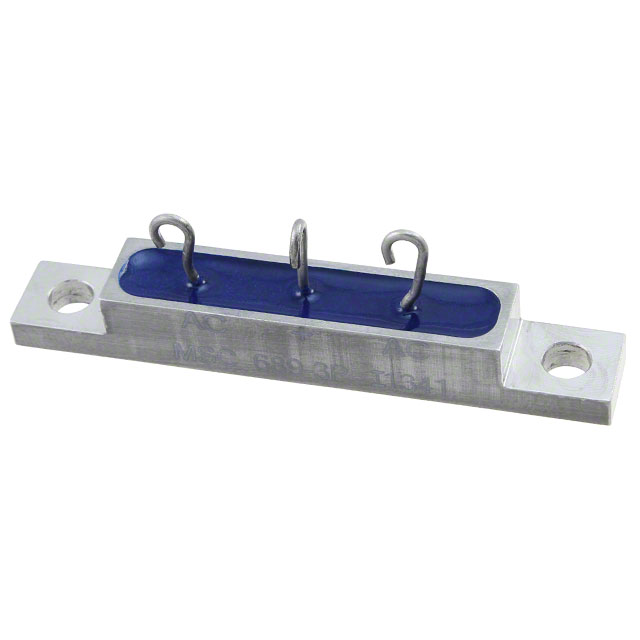

Image may be representation. See specifications for product details.

Product Overview

Part Number:	689-3P
Manufacturer/Brand:	Microsemi
Product description	DIODE MODULE 300V 15A SMD
Datasheets:	689-3P.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	433 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 433 pcs

Reference Price (In US Dollars)

4 pcs: $74.446

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$74.446

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 689-3P

Part Number	689-3P	Manufacturer	Microsemi
Description	DIODE MODULE 300V 15A SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	433 pcs	Data sheet	689-3P.pdf
Voltage - Forward (Vf) (Max) @ If	1.2V @ 10A	Voltage - DC Reverse (Vr) (Max)	300V
Supplier Device Package	ND	Speed	Fast Recovery = 200mA (Io)
Series	-	Reverse Recovery Time (trr)	500ns
Packaging	Bulk	Package / Case	ND, Module
Operating Temperature - Junction	150°C (Max)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Diode Type	Standard	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Standard 300V 15A Chassis Mount ND, Module	Current - Reverse Leakage @ Vr	10µA @ 300V
Current - Average Rectified (Io) (per Diode)	15A
