TBS22J-TP

Micro Commercial Components (MCC)

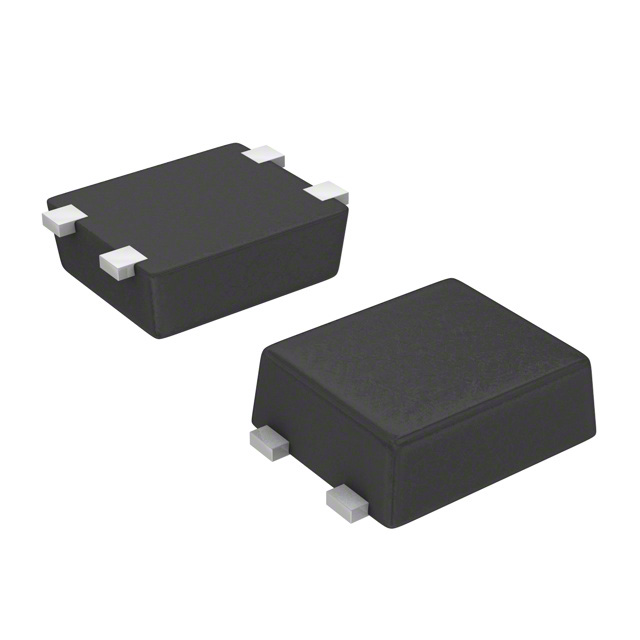

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TBS22J-TP
Manufacturer/Brand:	Micro Commercial Components (MCC)
Product description	BRIDGE RECT 2.2A 600V TBS
Datasheets:	TBS22J-TP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	914320 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 914320 pcs

Reference Price (In US Dollars)

3000 pcs: $0.038

6000 pcs: $0.036

15000 pcs: $0.032

30000 pcs: $0.03

75000 pcs: $0.027

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.038

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TBS22J-TP

Part Number	TBS22J-TP	Manufacturer	Micro Commercial Components (MCC)
Description	BRIDGE RECT 2.2A 600V TBS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	914320 pcs	Data sheet	TBS22J-TP.pdf
Voltage - Peak Reverse (Max)	600V	Voltage - Forward (Vf) (Max) @ If	1.1V @ 2A
Technology	Standard	Supplier Device Package	4-TBS
Series	-	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, Flat Leads	Other Names	TBS22J-TPMSTR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Single Phase
Detailed Description	Bridge Rectifier Single Phase Standard 600V Surface Mount 4-TBS	Current - Reverse Leakage @ Vr	5µA @ 600V
Current - Average Rectified (Io)	2.2A
