MCQ4822-TP

Micro Commercial Components (MCC)

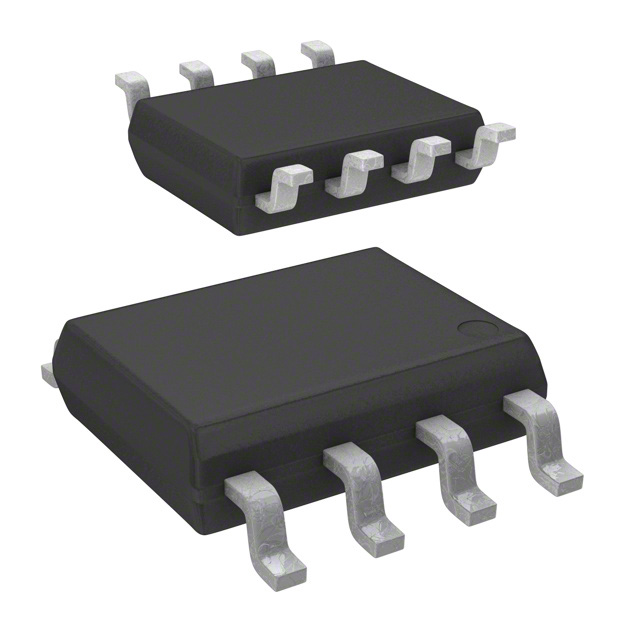

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MCQ4822-TP
Manufacturer/Brand:	Micro Commercial Components (MCC)
Product description	N-CHANNEL MOSFET, SOP-8 PACKAGE
Datasheets:	MCQ4822-TP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	140246 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 140246 pcs

Reference Price (In US Dollars)

1 pcs: $0.246

10 pcs: $0.206

100 pcs: $0.154

500 pcs: $0.113

1000 pcs: $0.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.246

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MCQ4822-TP

Part Number	MCQ4822-TP	Manufacturer	Micro Commercial Components (MCC)
Description	N-CHANNEL MOSFET, SOP-8 PACKAGE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	140246 pcs	Data sheet	MCQ4822-TP.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-SOP
Series	-	Rds On (Max) @ Id, Vgs	26 mOhm @ 6A, 4.5V
Power Dissipation (Max)	1.4W (Ta)	Packaging	Cut Tape (CT)
Package / Case	8-SOIC (0.154", 3.90mm Width)	Other Names	MCQ4822-TPMSCT
Operating Temperature	-55°C ~ 150°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1250pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	23nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	30V	Detailed Description	N-Channel 30V 8.5A (Ta) 1.4W (Ta) Surface Mount 8-SOP
Current - Continuous Drain (Id) @ 25°C	8.5A (Ta)
