MCMN2012-TP

Micro Commercial Components (MCC)

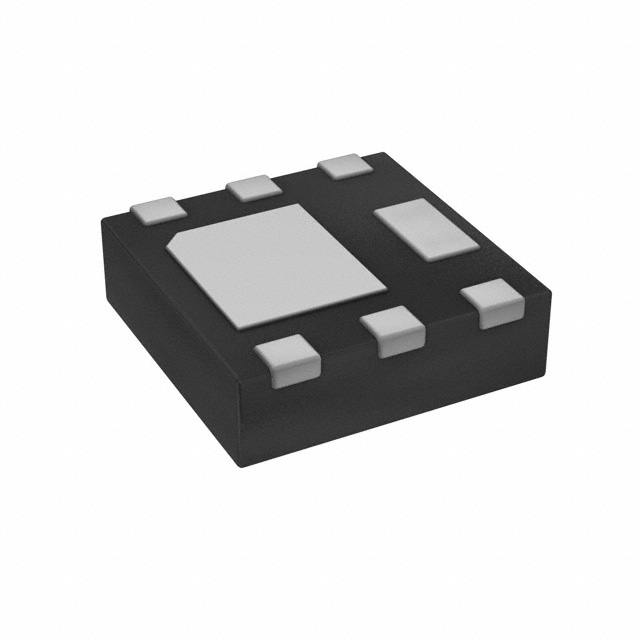

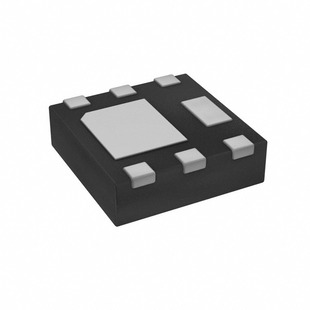

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MCMN2012-TP
Manufacturer/Brand:	Micro Commercial Components (MCC)
Product description	MOSFET N-CH 20V 12A DFN202
Datasheets:	MCMN2012-TP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	652299 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 652299 pcs

Reference Price (In US Dollars)

3000 pcs: $0.055

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.055

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MCMN2012-TP

Part Number	MCMN2012-TP	Manufacturer	Micro Commercial Components (MCC)
Description	MOSFET N-CH 20V 12A DFN202	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	652299 pcs	Data sheet	MCMN2012-TP.pdf
Vgs(th) (Max) @ Id	1V @ 250µA	Vgs (Max)	±10V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	DFN2020-6J
Series	-	Rds On (Max) @ Id, Vgs	11 mOhm @ 9.7A, 4.5V
Power Dissipation (Max)	-	Packaging	Tape & Reel (TR)
Package / Case	6-WDFN Exposed Pad	Other Names	MCMN2012-TPMSTR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 4V
Gate Charge (Qg) (Max) @ Vgs	32nC @ 5V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Drain to Source Voltage (Vdss)	20V	Detailed Description	N-Channel 20V 12A (Ta) Surface Mount DFN2020-6J
Current - Continuous Drain (Id) @ 25°C	12A (Ta)
