ESD5V0T143-4U-TP

Micro Commercial Components (MCC)

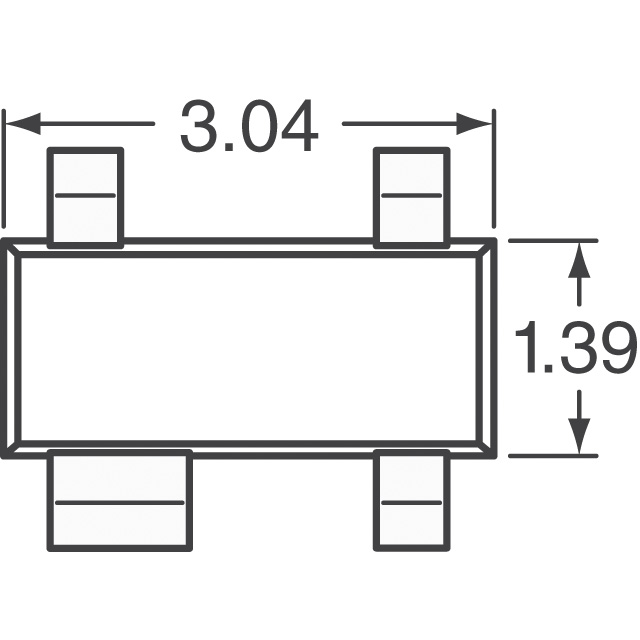

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESD5V0T143-4U-TP
Manufacturer/Brand:	Micro Commercial Components (MCC)
Product description	TVS DIODE 5V 20V SOT143
Datasheets:	ESD5V0T143-4U-TP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	241263 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 241263 pcs

Reference Price (In US Dollars)

3000 pcs: $0.149

6000 pcs: $0.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.149

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESD5V0T143-4U-TP

Part Number	ESD5V0T143-4U-TP	Manufacturer	Micro Commercial Components (MCC)
Description	TVS DIODE 5V 20V SOT143	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	241263 pcs	Data sheet	ESD5V0T143-4U-TP.pdf
Voltage - Reverse Standoff (Typ)	5V (Max)	Voltage - Clamping (Max) @ Ipp	20V
Voltage - Breakdown (Min)	6V	Unidirectional Channels	2
Type	Steering (Rail to Rail)	Supplier Device Package	SOT-143
Series	-	Power Line Protection	Yes
Power - Peak Pulse	500W	Packaging	Tape & Reel (TR)
Package / Case	TO-253-4, TO-253AA	Other Names	ESD5V0T143-4U-TPMSTR ESD5V0T1434UTP
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	28A (8/20µs)
Capacitance @ Frequency	3pF @ 1MHz	Base Part Number	ESD
Applications	General Purpose
