ATA6831C-PIQW-1

Micrel / Microchip Technology

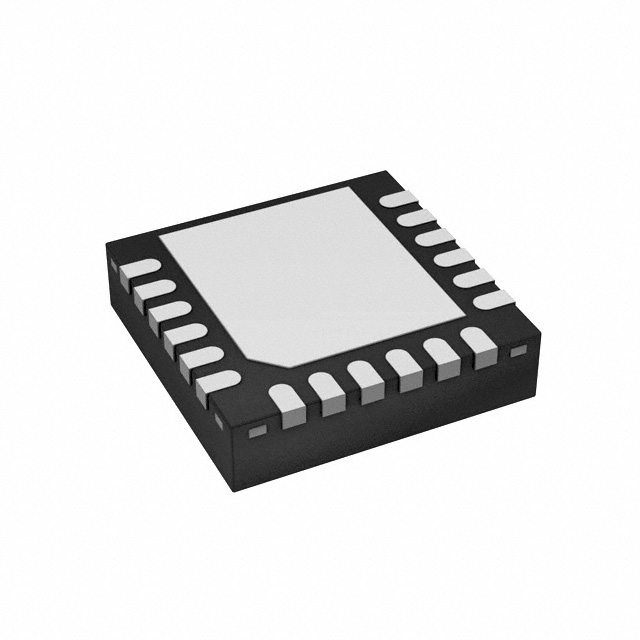

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATA6831C-PIQW-1
Manufacturer/Brand:	Micrel / Microchip Technology
Product description	IC MOTOR DRIVER SER 18QFN
Datasheets:	ATA6831C-PIQW-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5197 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5197 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATA6831C-PIQW-1

Part Number	ATA6831C-PIQW-1	Manufacturer	Micrel / Microchip Technology
Description	IC MOTOR DRIVER SER 18QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5197 pcs	Data sheet	ATA6831C-PIQW-1.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Voltage - Load	5.6 V ~ 40 V
Technology	Power MOSFET	Supplier Device Package	18-QFN (4x4)
Series	-	Rds On (Typ)	800 mOhm LS, 800 mOhm HS
Packaging	Tape & Reel (TR)	Package / Case	18-VFQFN Exposed Pad
Output Configuration	Half Bridge (3)	Other Names	ATA6831C-PIQW-1-ND ATA6831C-PIQW-1TR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Load Type	Inductive, Capacitive, Resistive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	PWM, SPI
Features	-	Fault Protection	Open Load Detect, Over Temperature, Short Circuit, UVLO
Detailed Description	Half Bridge (3) Driver Bulbs, DC Motors, Resistors Power MOSFET 18-QFN (4x4)	Current - Peak Output	-
Current - Output / Channel	1A	Base Part Number	ATA6831
Applications	Bulbs, DC Motors, Resistors
