Mechatronics

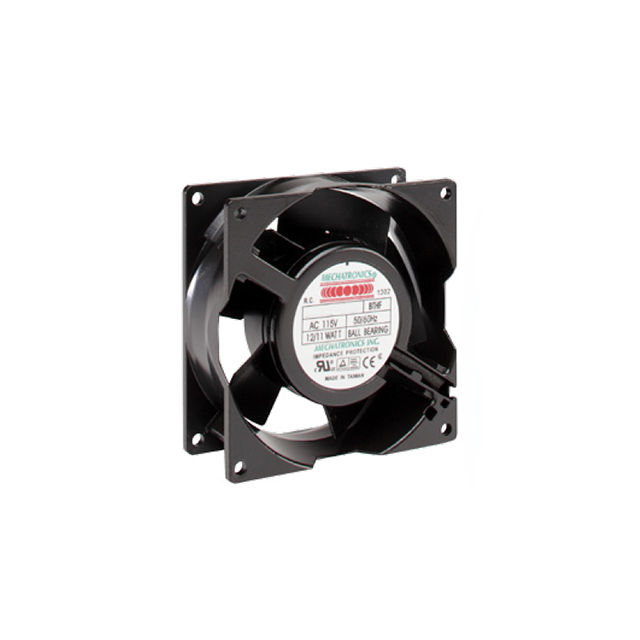

| Part Number | UF92AM12-BWHR-F | Manufacturer | Mechatronics |
|---|---|---|---|
| Description | FAN AXIAL 92X38MM 115V HIGH TEMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3945 pcs | Data sheet | 1.UF92AM12-BWHR-F.pdf2.UF92AM12-BWHR-F.pdf3.UF92AM12-BWHR-F.pdf |
| Width | 38.00mm | Weight | 0.948 lb (430.01g) |
| Voltage Range | - | Voltage - Rated | 115VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.300 in H2O (74.7 Pa) |
| Size / Dimension | Square - 92.5mm L x 92.5mm H | Series | UF92A |
| RPM | 3200 RPM | Power (Watts) | 11.00W |
| Other Names | 1570-1224 UF92AM12-BWHF UF92AM12-BWHR-F-ND |
Operating Temperature | -40 ~ 194°F (-40 ~ 90°C) |
| Noise | 42.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.120A |
| Bearing Type | Ball | Approvals | CE, cUL, TUV, UL |
| Air Flow | 51.0 CFM (1.43m³/min) |
