Mechatronics

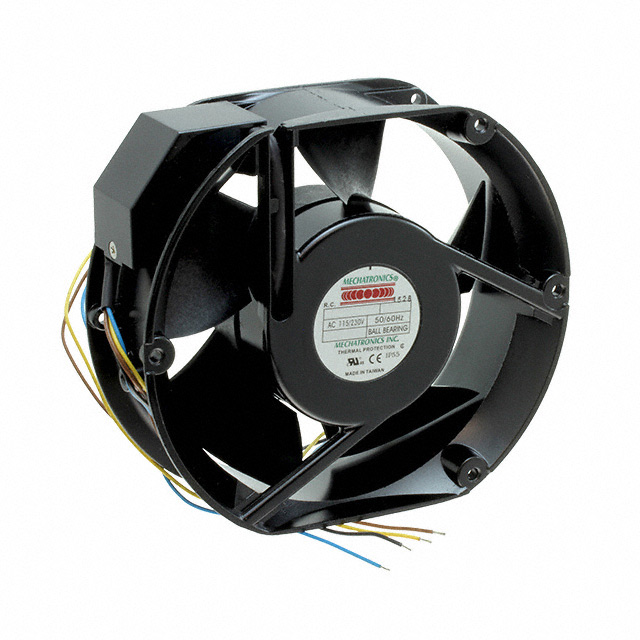

| Part Number | UF15KC12/23-BWHNSR-L36 | Manufacturer | Mechatronics |
|---|---|---|---|
| Description | FAN AXIAL 172X55MM 115/230VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1431 pcs | Data sheet | 1.UF15KC12/23-BWHNSR-L36.pdf2.UF15KC12/23-BWHNSR-L36.pdf3.UF15KC12/23-BWHNSR-L36.pdf4.UF15KC12/23-BWHNSR-L36.pdf |
| Width | 55.00mm | Weight | 2.3 lbs (1kg) |
| Voltage Range | - | Voltage - Rated | 115/230VAC |
| Termination | 4 Wire Leads | Static Pressure | 0.900 in H2O (224.2 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | UF15KC |
| RPM | 3400 RPM | Power (Watts) | 38.00W |
| Other Names | 1570-1839 | Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Noise | 60.0 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 12 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated | Fan Type | Tubeaxial |
| Current Rating | 0.170A/0.340A | Bearing Type | Ball |
| Approvals | CE, cUL, UL | Air Flow | 293.0 CFM (8.20m³/min) |
