MAX5064BATC+T

Maxim Integrated

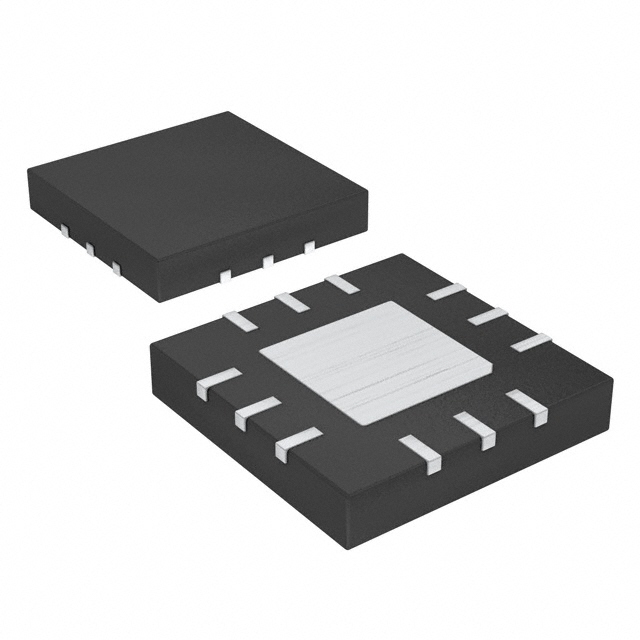

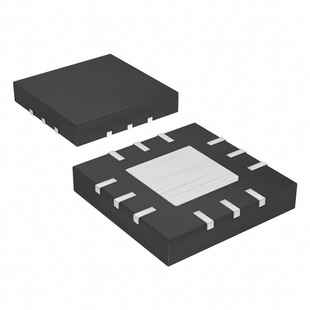

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MAX5064BATC+T
Manufacturer/Brand:	Maxim Integrated
Product description	IC MOSFET DRIVER 12-TQFN
Datasheets:	1.MAX5064BATC+T.pdf 2.MAX5064BATC+T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75025 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 75025 pcs

Reference Price (In US Dollars)

2500 pcs: $0.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.512

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MAX5064BATC+T

Part Number	MAX5064BATC+T	Manufacturer	Maxim Integrated
Description	IC MOSFET DRIVER 12-TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75025 pcs	Data sheet	1.MAX5064BATC+T.pdf 2.MAX5064BATC+T.pdf
Voltage - Supply	8 V ~ 12.6 V	Supplier Device Package	12-TQFN (4x4)
Series	-	Rise / Fall Time (Typ)	65ns, 65ns
Packaging	Tape & Reel (TR)	Package / Case	12-WQFN Exposed Pad
Operating Temperature	-40°C ~ 150°C (TJ)	Number of Drivers	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Logic Voltage - VIL, VIH	0.8V, 2V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)	125V	Gate Type	N-Channel MOSFET
Driven Configuration	Half-Bridge	Detailed Description	Half-Bridge Gate Driver IC Inverting, Non-Inverting 12-TQFN (4x4)
Current - Peak Output (Source, Sink)	2A, 2A	Channel Type	Independent
Base Part Number	MAX5064
