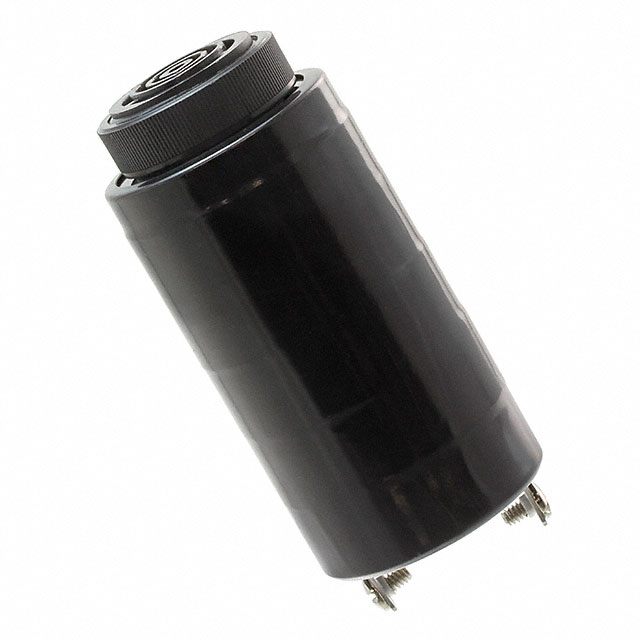

Mallory Sonalert Products
| Part Number | VSB110-2 | Manufacturer | Mallory Sonalert Products |
|---|---|---|---|
| Description | AUDIO PIEZO IND 30-120V PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 605 pcs | Data sheet | 1.VSB110-2.pdf2.VSB110-2.pdf |
| Voltage Range | 30 ~ 120V | Voltage - Rated | 110V |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Technology | Piezo |
| Sound Pressure Level (SPL) | 80dB @ 110V, 61cm | Size / Dimension | 1.687" Dia (42.85mm) |
| Series | VSB | Ratings | - |
| Port Location | Top | Packaging | Bulk |
| Other Names | 458-1589 VSB110-2-ND |
Operating Temperature | -40°C ~ 85°C |
| Operating Mode | Chirp | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC |
| Height - Seated (Max) | 3.642" (92.50mm) | Frequency | 2kHz |
| Duration | Repeating every 1 Sec | Driver Circuitry | Indicator, Internally Driven |
| Detailed Description | Buzzers Indicator, Internally Driven Piezo 110V 40mA 2kHz 80dB @ 110V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Current - Supply | 40mA |
| Approvals | cUL, UL |
