Mallory Sonalert Products

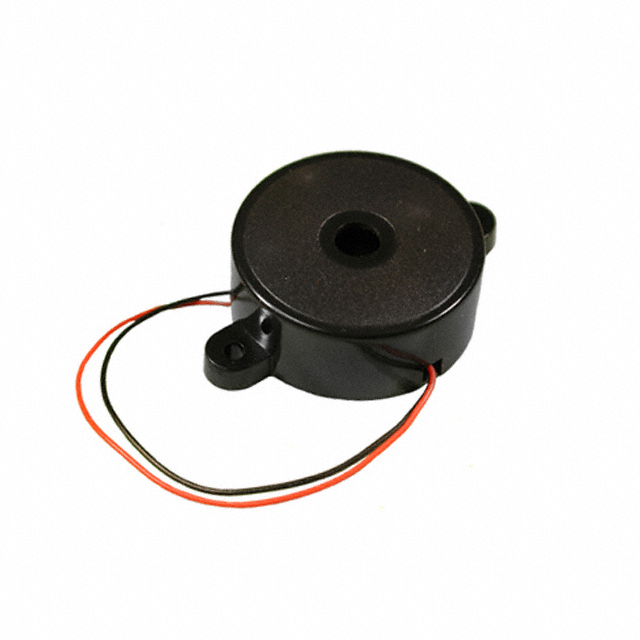

| Part Number | PT-2060WQ | Manufacturer | Mallory Sonalert Products |
|---|---|---|---|
| Description | AUDIO PIEZO XDCR 1-30V CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53489 pcs | Data sheet | 1.PT-2060WQ.pdf2.PT-2060WQ.pdf |
| Voltage Range | 1 ~ 30V | Voltage - Rated | 5V |
| Termination | Wire Leads | Technology | Piezo |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm | Size / Dimension | 0.945" Dia (24.00mm) |
| Series | PT | Ratings | - |
| Port Location | Top | Packaging | Bulk |
| Other Names | 458-1261 PT-2060WQ-ND PT2060WQ |
Operating Temperature | -20°C ~ 70°C |
| Operating Mode | Single Tone | Mounting Type | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Peak-Peak Signal |
| Height - Seated (Max) | 0.205" (5.20mm) | Frequency | 6kHz |
| Duration | - | Driver Circuitry | Transducer, Externally Driven |
| Detailed Description | Buzzers Transducer, Externally Driven Piezo 5V 1.5mA 6kHz 90dB @ 5V, 10cm Panel Mount, Flange Wire Leads | Current - Supply | 1.5mA |
| Approvals | - |
