Mallory Sonalert Products

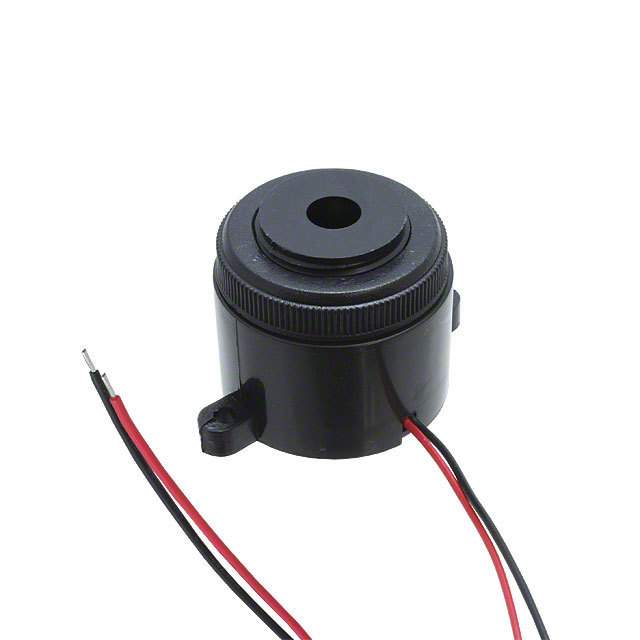

| Part Number | PF-20A35EWQ | Manufacturer | Mallory Sonalert Products |
|---|---|---|---|
| Description | AUDIO PIEZO IND 3-24V PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14203 pcs | Data sheet | 1.PF-20A35EWQ.pdf2.PF-20A35EWQ.pdf |
| Voltage Range | 3 ~ 24V | Voltage - Rated | 12V |
| Termination | Wire Leads | Technology | Piezo |
| Sound Pressure Level (SPL) | 95dB @ 12V, 30cm | Size / Dimension | 1.102" Dia (28.00mm) |
| Series | PF | Ratings | - |
| Port Location | Top | Packaging | Bulk |
| Other Names | 458-1213 PF-20A35EWQ-ND PF20A35EWQ |
Operating Temperature | -20°C ~ 70°C |
| Operating Mode | Pulse, Fast | Mounting Type | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Height - Seated (Max) | 0.992" (25.20mm) | Frequency | 3.5kHz |
| Duration | - | Driver Circuitry | Indicator, Internally Driven |
| Detailed Description | Buzzers Indicator, Internally Driven Piezo 12V 10mA 3.5kHz 95dB @ 12V, 30cm Panel Mount, Flange Wire Leads | Current - Supply | 10mA |
| Approvals | - |
