METZ CONNECT
| Part Number | PR20C03VBDN | Manufacturer | METZ CONNECT |
|---|---|---|---|

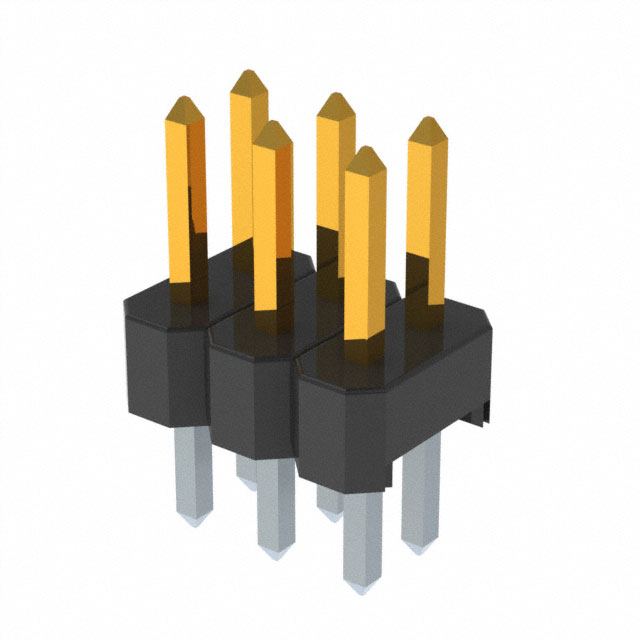

| Description | PIN HEADER, DUAL ROW, 2.00 MM VE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 489794 pcs | Data sheet | PR20C03VBDN.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | 0.343" (8.70mm) | Other Names | 1849-1000 1849-1000-2 1849-1000-2-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyethylene | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Zinc | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.154" (3.91mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
