METZ CONNECT

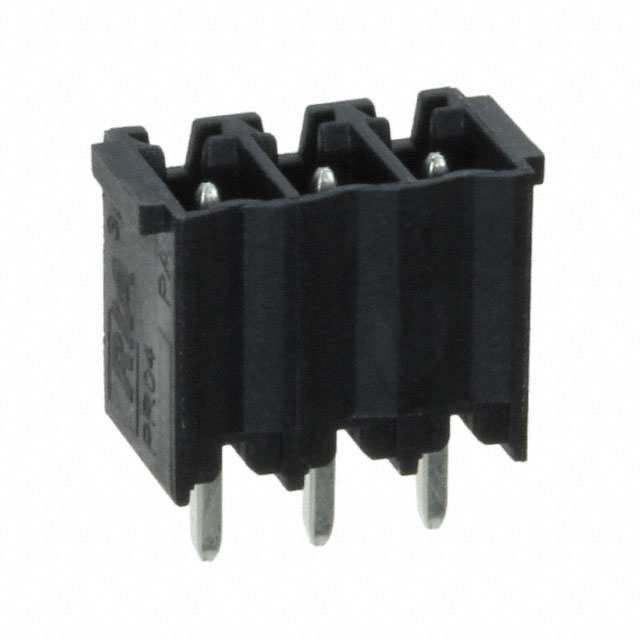

| Part Number | 31189103 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SHROUDED HEADER, VERTICAL, PCB, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 153642 pcs | Data sheet | 31189103.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | - |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 1849-1135 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.362" (9.20mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Header Orientation | Vertical |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | 0.126" (3.20mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
