METZ CONNECT
| Part Number | 31177108 | Manufacturer | METZ CONNECT |
|---|---|---|---|

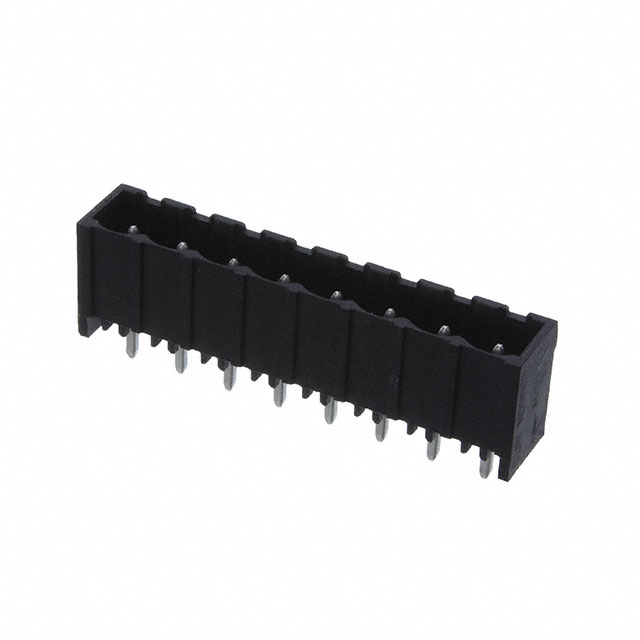

| Description | SHROUDED HEADER, VERTICAL, THR, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54466 pcs | Data sheet | 31177108.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | - |
| Screw Size | - | Positions Per Level | 8 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | 1849-1215 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.128" (3.25mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
