PT-6503

MEAN WELL

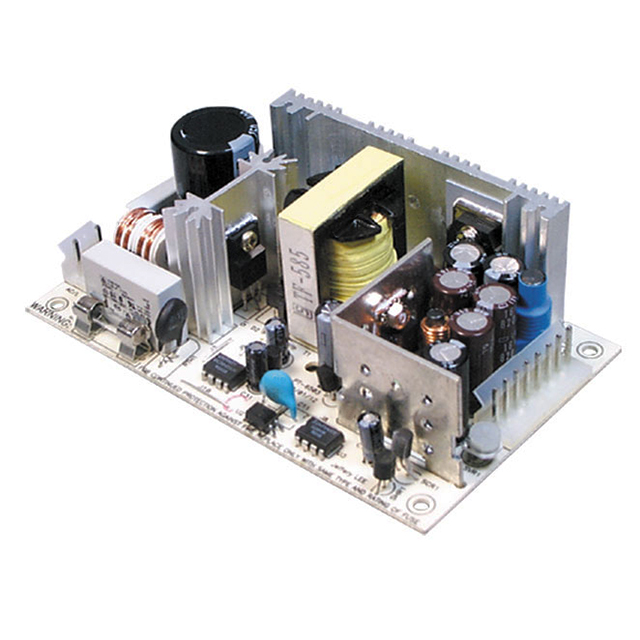

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT-6503
Manufacturer/Brand:	MEAN WELL
Product description	AC/DC CONVERTER 3.3V 5V 12V 62W
Datasheets:	PT-6503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4363 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4363 pcs

Reference Price (In US Dollars)

1 pcs: $8.348

10 pcs: $7.858

25 pcs: $7.613

50 pcs: $7.367

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.348

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT-6503

Part Number	PT-6503	Manufacturer	MEAN WELL
Description	AC/DC CONVERTER 3.3V 5V 12V 62W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4363 pcs	Data sheet	PT-6503.pdf
Voltage - Output 4	-	Voltage - Output 3	12V
Voltage - Output 2	5V	Voltage - Output 1	3.3V
Voltage - Isolation	3kV	Voltage - Input	90 ~ 264 VAC, 127 ~ 370 VDC
Type	Open Frame	Size / Dimension	5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm)
Series	PT-6503	Power (Watts)	62W
Other Names	1866-3927 PT-6503-ND	Operating Temperature	-10°C ~ 60°C (With Derating)
Number of Outputs	3	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Load Required	No
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Adjustable Output, Universal Input	Efficiency	72%
Detailed Description	Open Frame AC DC Converter 3 Output 3.3V 5V 12V 6A, 6A, 1A 90 ~ 264 VAC, 127 ~ 370 VDC Input	Current - Output (Max)	6A, 6A, 1A
Approvals	CB, CE, cURus, TUV	Applications	ITE (Commercial)
